Power Window SUBSWITCH Inspection
>>
Auto-open/close Function For All Windows
>>
Inspection using an oscilloscope (reference)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Inspection using an oscilloscope (reference)

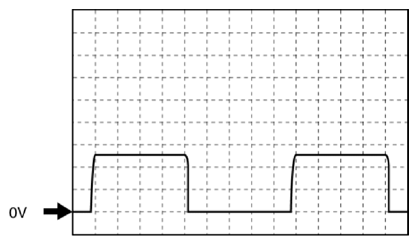

Fig 1: Power Window Subswitch Voltage Signal Waveform
Courtesy of MAZDA MOTORS CORP.
Terminal:
D, F(+) ↔ ground (-)
Oscilloscope setting: 2 V/DIV (Y), 1 ms/DIV (X), DC range
Courtesy of MAZDA MOTORS CORP.
