Power Window SUBSWITCH Removal/Installation: Rear-side

Disconnect the negative battery terminal. Refer to NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Remove the rear door trim. Refer to REAR DOOR TRIM REMOVAL/INSTALLATION .)

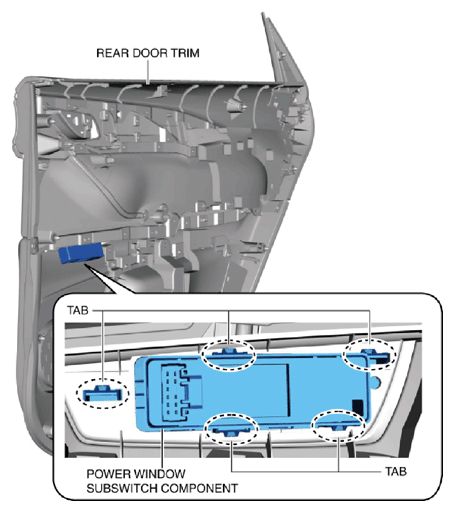

Detach the tabs at the positions shown in the figure from the rear door trim using a remover tool, and remove the power window subswitch component.

Fig 1: Removing Power Window Subswitch Component
Courtesy of MAZDA MOTORS CORP.

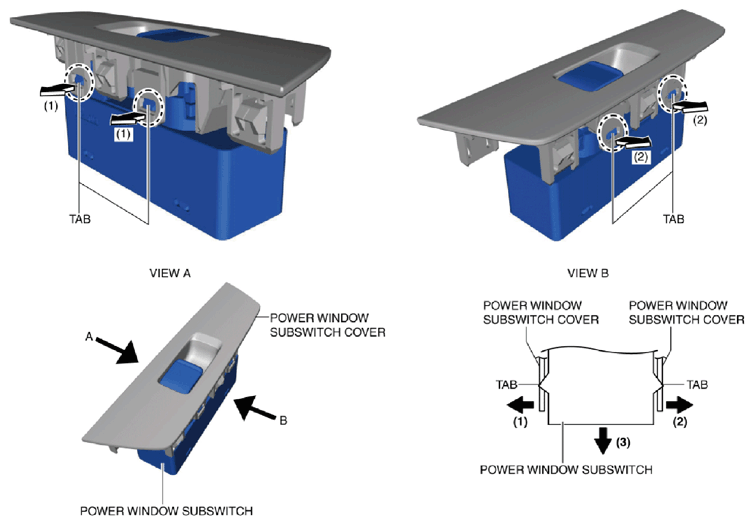

Move the power window subswitch cover end in the order of arrows (1) and (2) shown in the figure using a remover tool and detach the tabs from the power window subswitch cover.

Fig 2: Moving Power Window Subswitch Cover End
Courtesy of MAZDA MOTORS CORP.
Remove the power window subswitch in the direction of the arrow (3) shown in the figure.
Install in the reverse order of removal.
