Rear Window Defogger System Inspection
>>
System wiring diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
System wiring diagram

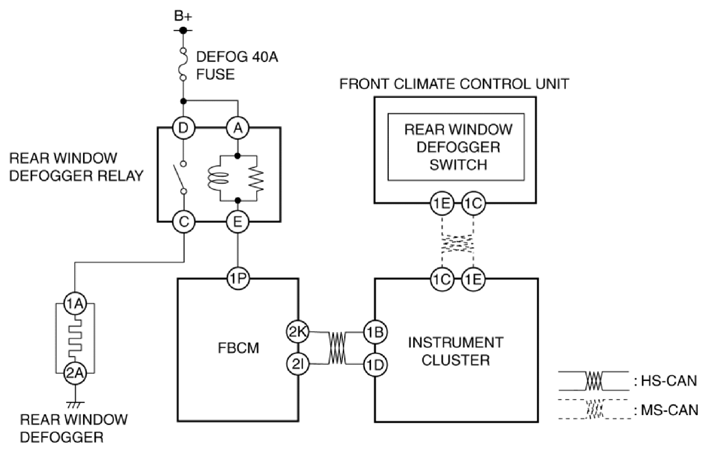

Fig 1: Rear Window Defogger System Wiring Diagram
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
