Front Accessory Socket Inspection

Disconnect the negative battery terminal. (Refer to NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Remove the following parts.
1. Passenger-side console side panel (Refer to CONSOLE SIDE PANEL REMOVAL/INSTALLATION .)
2. Passenger-side side wall (Refer to SIDE WALL REMOVAL/INSTALLATION .)
3. Front accessory socket (Refer to FRONT ACCESSORY SOCKET REMOVAL/INSTALLATION .)
Connect the tester probe to the position shown in the figure and verify that there is continuity.

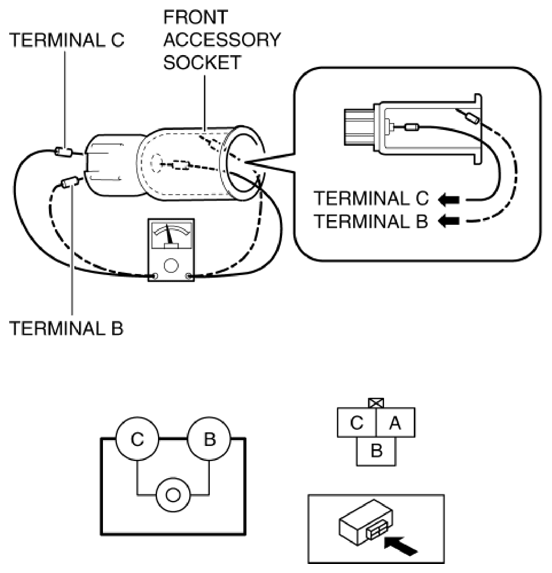

Fig 1: Connecting Tester Probe To Front Accessory Socket
Courtesy of MAZDA MOTORS CORP.
- If it cannot be verified, replace the front accessory socket. (Refer to FRONT ACCESSORY SOCKET REMOVAL/INSTALLATION .)
