Auto-open/close function for driver-side

Disconnect the negative battery terminal. Refer to NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Remove the front door trim. (Passenger-side) Refer to FRONT DOOR TRIM REMOVAL/INSTALLATION .)
Disconnect the front power window motor connector.

Apply battery positive voltage and connect the ground to front power window motor terminals E and F, and then inspect the front power window motor operation.

B+ Terminal	Ground Terminal	Operation
E	F	Close
F	E	Open

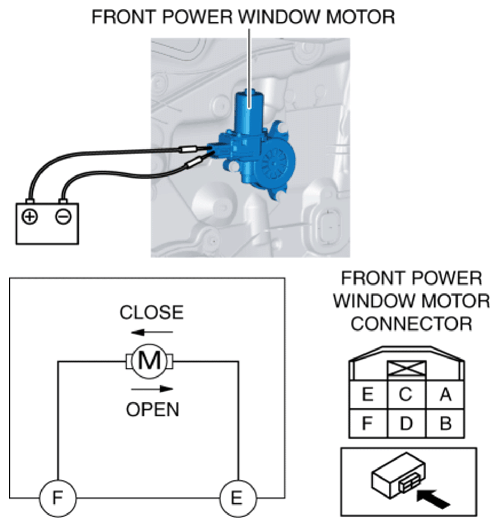

Fig 1: Applying Battery Positive Voltage To Front Power Window Motor Terminals

Courtesy of MAZDA MOTORS CORP.

If the front power window motor does not operate as indicated in the table, replace it. Refer to FRONT POWER WINDOW MOTOR REMOVAL/INSTALLATION .)
