Front Power Window Regulator Removal/Installation
- Perform the front door glass preparation. Refer to FRONT DOOR GLASS REMOVAL/INSTALLATION .)
- Disconnect the negative battery terminal. Refer to NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION
.)
- Remove the following parts:
- Front door trim Refer to FRONT DOOR TRIM REMOVAL/INSTALLATION
.)
- Front door speaker Refer to FRONT DOOR SPEAKER REMOVAL/INSTALLATION
.)
- Front door glass Refer to FRONT DOOR GLASS REMOVAL/INSTALLATION .)
- Front power window motor Refer to FRONT POWER WINDOW MOTOR REMOVAL/INSTALLATION .)

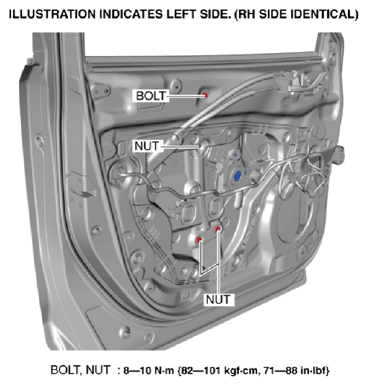

- Remove the bolt.
Courtesy of MAZDA MOTORS CORP.
- Remove the nuts.

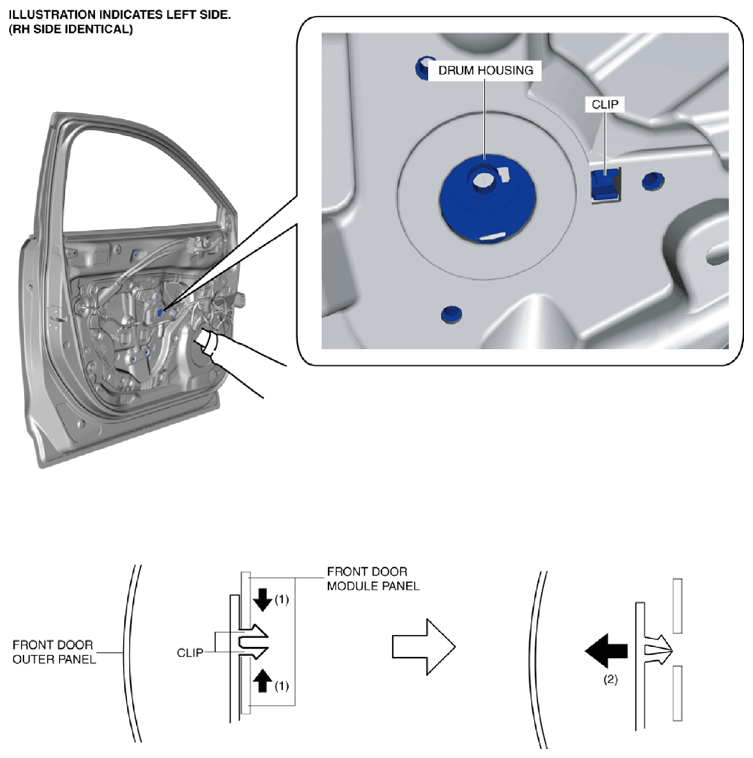

- Insert your hand through the front door speaker installation hole and support the drum housing.
Courtesy of MAZDA MOTORS CORP.
- Move the clip tabs in the direction of arrow (1) shown in the figure to detach the tabs, and move the clip in the direction of arrow (2) to remove.

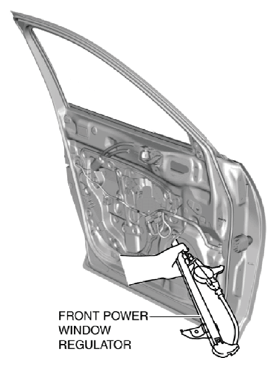

- Remove the front power window regulator through the speaker installation hole.
CAUTION:
- When removing the front power window regulator, the front power window regulator may contact the front door speaker installation hole, and the coating film of the front door inner panel and the front power window regulator could be damaged. Remove the front power window regulator while verifying that the front power window regulator and the front door speaker installation hole do not contact each other.
Courtesy of MAZDA MOTORS CORP.
- Install in the reverse order of removal.
