Outer Mirror Glass Installation

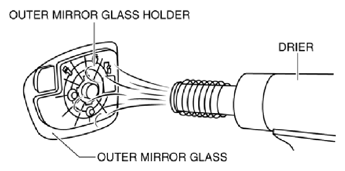

Fig 1: Heating Outer Mirror Glass Holder Using Drier

Courtesy of MAZDA MOTORS CORP.

NOTE:

Installation of the outer mirror glass can be facilitated by heating the outer mirror glass holder to approx. 50°C {90°F} to 60° C {108°F} degrees using a drier.
Be careful not to overheat the outer mirror, as temperatures higher than 60°C {108°F} degrees could deform it.

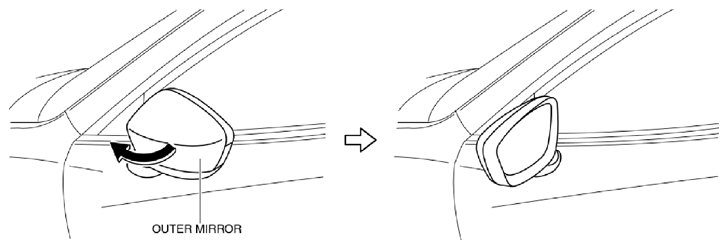

To facilitate installation of the outer mirror glass, orient the outer mirror in the direction of arrow shown in the figure.

Fig 2: Installing Outer Mirror Glass
Courtesy of MAZDA MOTORS CORP.
Affix the protective tape to the position shown in the figure to prevent scratches and damage.

Fig 3: Affixing Protective Tape To Position
Courtesy of MAZDA MOTORS CORP.

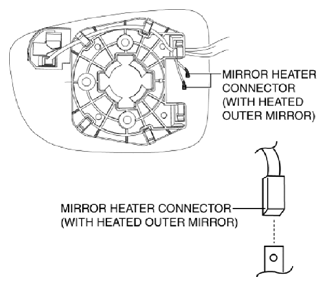

Connect the mirror heater connectors. (with heated outer mirror)

Fig 4: Connecting Mirror Heater Connectors (With Heated Outer Mirror)
Courtesy of MAZDA MOTORS CORP.

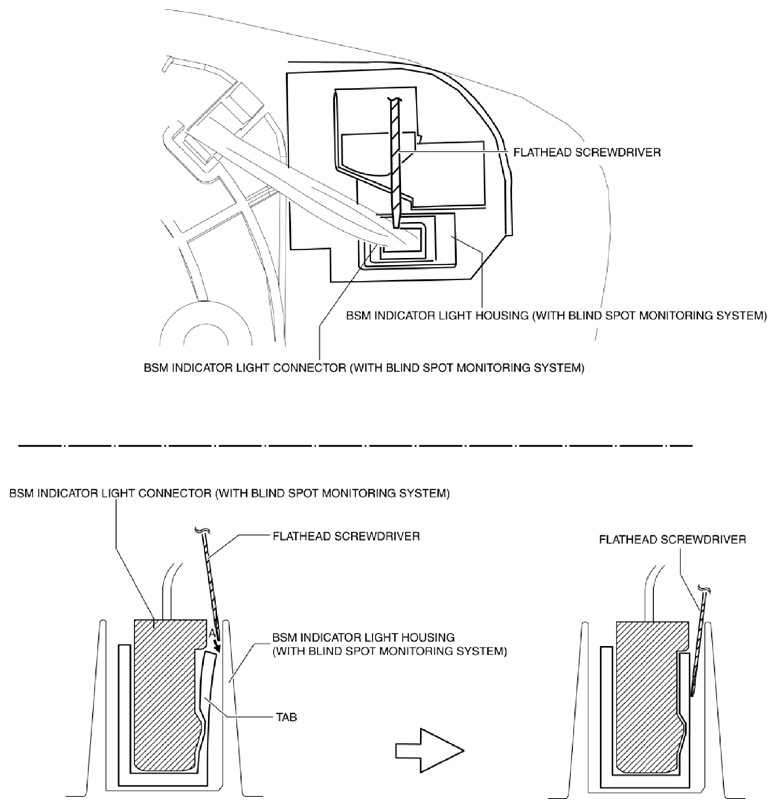

Connect the BSM indicator light connector (with blind spot monitoring system).
CAUTION:
- Lightly pull the BSM indicator light connector and verify that the BSM indicator light housing cannot be pulled off. If the connection is poor, insert a tape-wrapped flathead screwdriver into position A shown in the figure and engage the connector. (with blind spot monitoring system)
Fig 5: Connecting BSM Indicator Light Connector (With Blind Spot Monitoring System)
Courtesy of MAZDA MOTORS CORP.

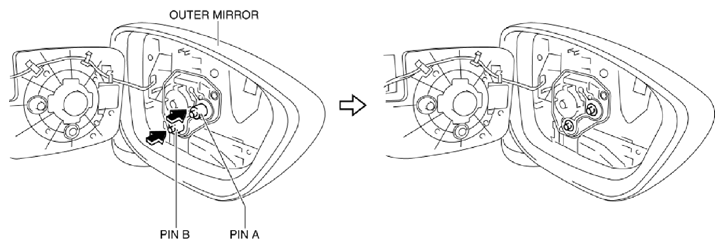

Press in outer mirror pins A and B in the direction of arrows shown in the figure.

Fig 6: Pressing Outer Mirror Pins
Courtesy of MAZDA MOTORS CORP.

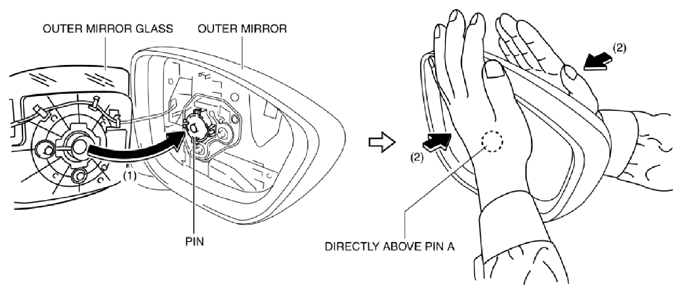

Align the outer mirror glass with the outer mirror in the direction of arrow (1) shown in the figure and while pressing in the direction of arrow (2), install pin.
CAUTION:
- If the outer mirror moves when installing the outer mirror glass, the stay could be damaged. When installing the outer mirror glass, use both hands to press together the outer mirror glass and outer mirror.
Fig 7: Aligning Outer Mirror Glass With Outer Mirror
Courtesy of MAZDA MOTORS CORP.

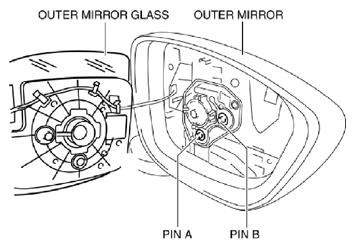

Install pins A and B in the same way as in Step 5.

Fig 8: Installing Pins
Courtesy of MAZDA MOTORS CORP.
Connect the negative battery terminal. Refer to NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
