Clip Replacement Note

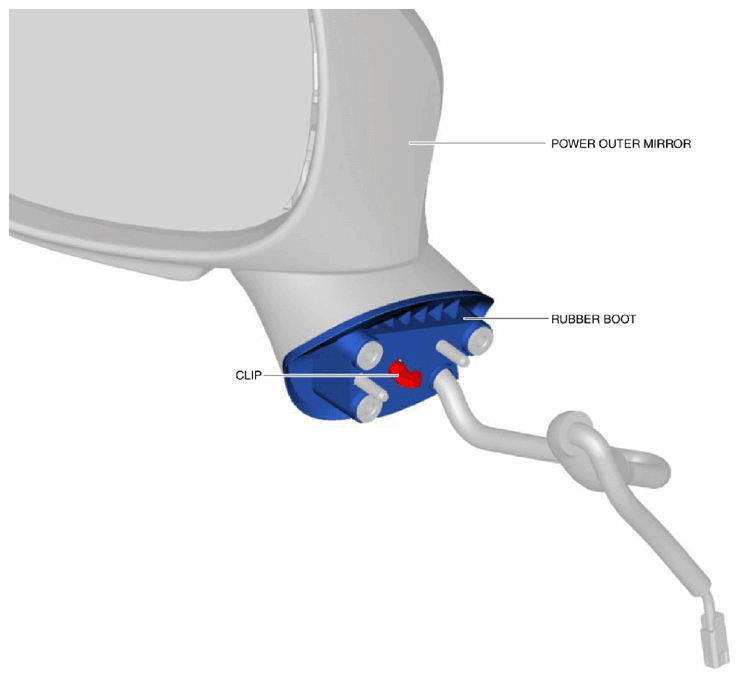

  1. Remove the rubber boot.
    Fig 1: Removing Rubber Boot
    G10949594Courtesy of MAZDA MOTORS CORP.

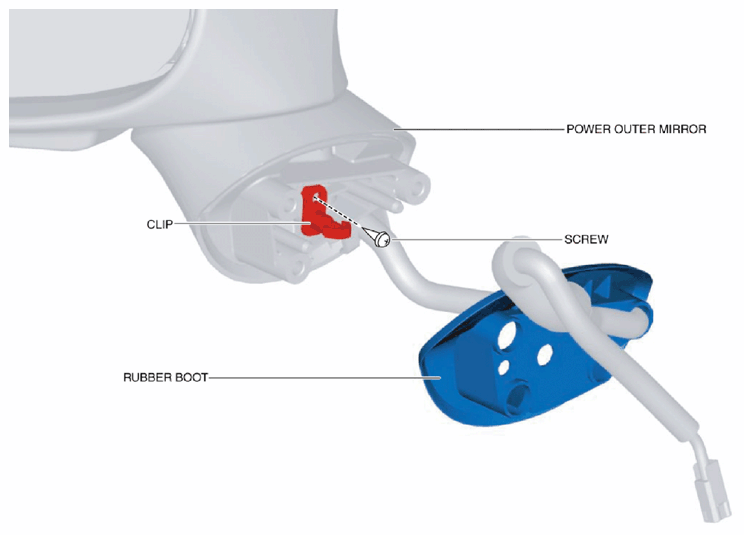

  2. Remove the screw.
    Fig 2: Removing Screw
    G10949595Courtesy of MAZDA MOTORS CORP.
  3. Remove the clip.
  4. Install in the reverse order of removal.
