Windshield Installation

WARNING:
  • Using a utility knife with bare hands can cause injury. Always wear gloves when using a utility knife.
CAUTION:
  • If a door is opened or closed when all the window glass is closed, the resulting change in air pressure could cause the sealant to crack preventing the proper installation of the windshield. Keep the door glass opened until the windshield installation is completed.
  1. Remove the sealant along the perimeter of the glass using a utility knife. (Reusing windshield)
  2. Clean and degrease an approx. 50 mm {2.0 in} wide strip along the perimeter of the windshield.
  3. Inspect the glass for cracks. If it is cracked, chamfer it using sandpaper.
  4. Align the alignment marks made before removal and install the pin to the windshield referring to the figure. (Reusing windshield)

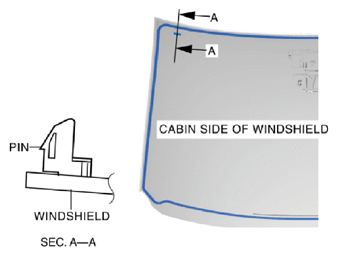

    Fig 1: Installing Pin To Windshield
    G10949523Courtesy of MAZDA MOTORS CORP.
  5. Install the windshield molding.

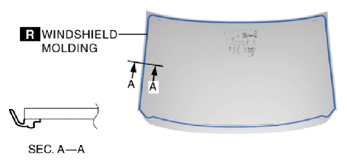

    Fig 2: Installing Windshield Molding
    G10949524Courtesy of MAZDA MOTORS CORP.
  6. Apply primer to the area of the glass shown in the figure.
    • Follow the primer product instructions for the drying time.
    CAUTION:
    • To prevent weakening of the primer adhesion, keep the bonding surface free of dirt, moisture, and grease. Do not touch the surface with your hand.
    NOTE:
    • Apply primer to the hollowed marks in the ceramic coating.

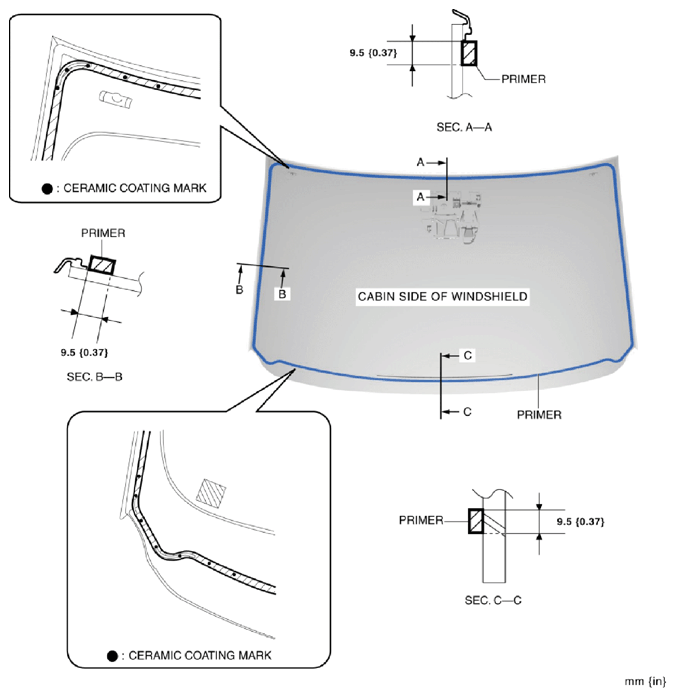

    Fig 3: Applying Primer To Glass Area
    G10949525Courtesy of MAZDA MOTORS CORP.
  7. Cut away the old sealant using a utility knife so that 1-2 mm {0.04-0.07 in} thickness of sealant remains along the perimeter of the frame.
    Fig 4: Cutting Old Sealant Using Knife
    G10949526Courtesy of MAZDA MOTORS CORP.
  8. Clean and degrease along the perimeter of the bonding area on the body.
  9. Apply primer to the area of the body shown in the figure.
    • Follow the primer product instructions for the drying time.
    CAUTION:
    • To prevent weakening of the primer adhesion, keep the bonding surface free of dirt, moisture, and grease. Do not touch the surface with your hand.

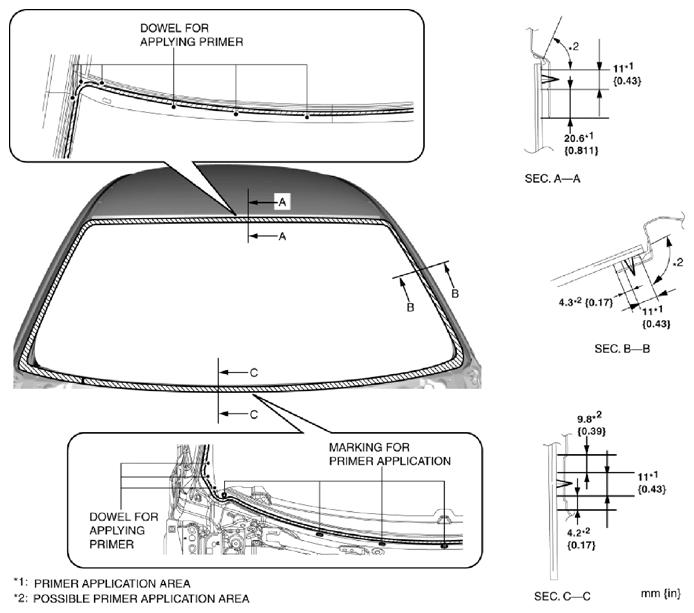

    Fig 5: Applying Primer To Body Area
    G10949527Courtesy of MAZDA MOTORS CORP.
  10. Apply sealant to the area of the glass surface as shown in the figure.

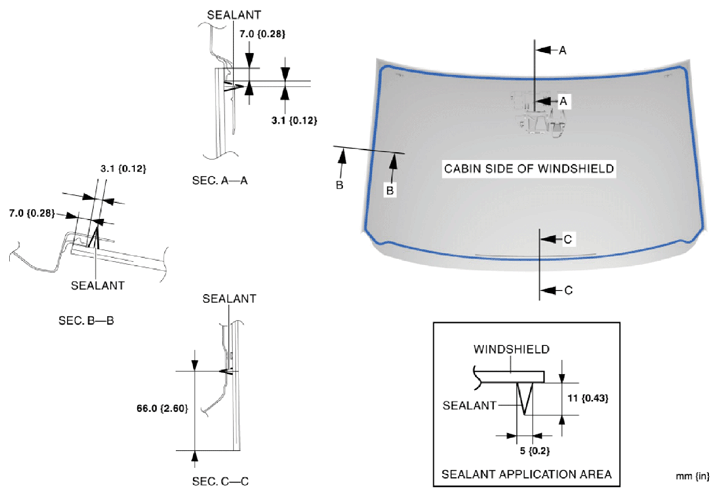

    Fig 6: Applying Sealant To Glass Surface Area
    G10949528Courtesy of MAZDA MOTORS CORP.
  11. Insert the positioning pins to the body and install the windshield.
  12. Verify that the clearance between the A-pillar and the roof is within the range shown in the figure, and press along the perimeter of the glass.

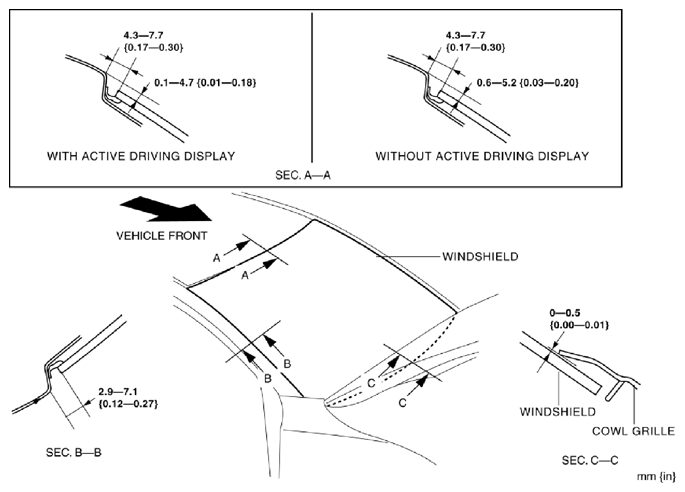

    Fig 7: Checking Clearance Between A-Pillar And Roof
    G10949529Courtesy of MAZDA MOTORS CORP.
  13. Install the following parts:
    1. Auto-dimming rearview mirror (with auto-dimming rearview mirror) Refer to AUTO-DIMMING REARVIEW MIRROR REMOVAL/INSTALLATION .)
    2. Rearview mirror (without auto-dimming rearview mirror) Refer to REARVIEW MIRROR REMOVAL/INSTALLATION .)
    3. Laser sensor (with smart city brake support (SCBS)) Refer to LASER SENSOR REMOVAL/INSTALLATION .)
    4. Rain sensor (with auto light/wiper system) Refer to RAIN SENSOR REMOVAL/INSTALLATION .)
    5. Forward sensing camera (FSC) Short-cord (with forward sensing camera (FSC)) Refer to FORWARD SENSING CAMERA (FSC) SHORT-CORD REMOVAL/INSTALLATION .)
    6. Forward sensing camera (FSC) clip (with forward sensing camera (FSC)) Refer to FORWARD SENSING CAMERA (FSC) CLIP REMOVAL/INSTALLATION .)
    7. Forward sensing camera (FSC) cover (with forward sensing camera (FSC)) Refer to FORWARD SENSING CAMERA (FSC) COVER REMOVAL/INSTALLATION .)
    8. Forward sensing camera (FSC) (with forward sensing camera (FSC)) Refer to FORWARD SENSING CAMERA (FSC) REMOVAL/INSTALLATION .)
    9. Sensor cover Refer to SENSOR COVER REMOVAL/INSTALLATION .)
    10. Assist handle Refer to ASSIST HANDLE REMOVAL/INSTALLATION .)
    11. Front map light Refer to FRONT MAP LIGHT REMOVAL/INSTALLATION .)
    12. Sunvisor Refer to SUNVISOR REMOVAL/INSTALLATION .)
    13. A-pillar trim Refer to A-PILLAR TRIM REMOVAL/INSTALLATION .)
    14. Front fender molding Refer to FRONT FENDER MOLDING REMOVAL/INSTALLATION .)
    15. Cowl grille Refer to COWL GRILLE REMOVAL/INSTALLATION .)
    16. Windshield wiper arm and blade Refer to WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION .)
  14. Connect the negative battery terminal. Refer to NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  15. Allow the sealant to harden completely.
    NOTE:
    • Follow the sealant product instructions for the drying time.
  16. Perform the forward sensing camera (FSC) aiming in the following cases. Refer to FORWARD SENSING CAMERA (FSC) AIMING .)
    • Windshield is replaced
    • Windshield is reused and forward sensing camera (FSC) or forward sensing camera (FSC) clips are replaced
  17. If the rain sensor is replaced, perform the sensitivity setting procedure for the auto lights. Refer to CONTROL SYSTEM PERSONALIZATION FEATURES SETTING PROCEDURE .)
