Forced Ignition On
NOTE:
- The forced ignition ON procedure forces a power supply to each part when no power is available even after the push button start has been operated. However, the engine cannot be started.
- In order to perform a forced ignition ON, the M-MDS is necessary. If the servicing is being done outside of an Authorized Mazda dealership, contact an Authorized Mazda dealership for instructions.
- Verify that the vehicle is in accordance with the following conditions:
- Communication between start stop unit and M-MDS is enabled.
- There are no remote transmitters in the vehicle.
- All the doors, hood, and liftgate are closed.
- Get PCM part number from As-built site.
- Connect the M-MDS to the DLC-2.
- Select the "Manual Vehicle Entry".
- Select the "All other" from Vehicle list.

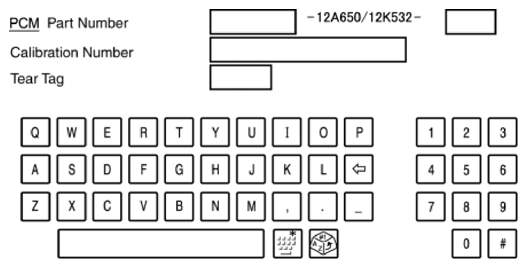

- Input the PCM part number on the following screen.
- After the vehicle is identified, select the following items from the initialization screen of the M-MDS.
- "Body"
- "Special Ignition ON"
- Perform the procedure according to the directions on the screen.
- Delete the session, but keep the ignition ON.
- Normal vehicle identification.
