Brush Assembly Note

CAUTION:

Melt the solder quickly, otherwise the diodes (rectifier) and brush holder will be damaged by excessive heat.

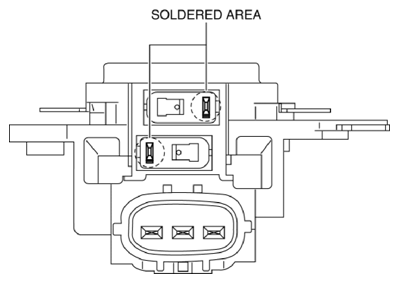

Fig 1: Identifying Generator Solder Area (Brush Assembly Note)

Courtesy of MAZDA MOTORS CORP.

Press the brush into the brush holder with it facing in the direction shown in the figure.

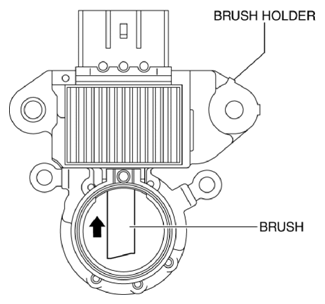

Fig 2: Pressing Brush Into Brush Holder
Courtesy of MAZDA MOTORS CORP.
Solder the brush to the brush holder.
