Brush Disassembly Note

CAUTION:
  • Melt the solder quickly, otherwise the diodes (rectifier) and brush holder will be damaged by excessive heat.

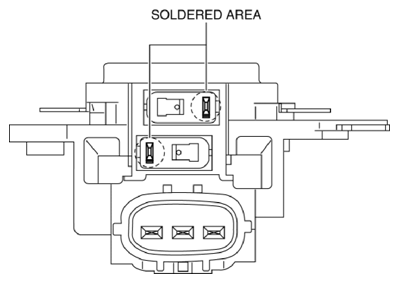

Fig 1: Identifying Generator Solder Area (Brush Disassembly Note)
G10947024Courtesy of MAZDA MOTORS CORP.
  1. Melt the solder and remove the brush from the brush holder.
