Pulley Disassembly/Assembly Note

  1. Disassemble/assemble the pulley using the SST.

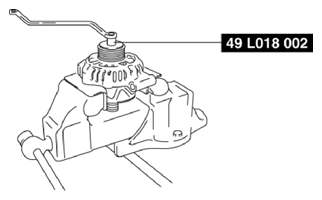

    Fig 1: Assembling Pulley Using SST
    G10947023Courtesy of MAZDA MOTORS CORP.
