Generator Removal Note

Remove the wiring harness bracket using the following procedure.
1. Remove the bolts shown in the figure.

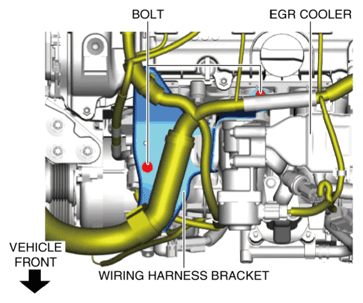

  Fig 1: Identifying Wiring Harness Bracket Bolts
  Courtesy of MAZDA MOTORS CORP.
2. Remove the wiring harness clips shown in the figure.

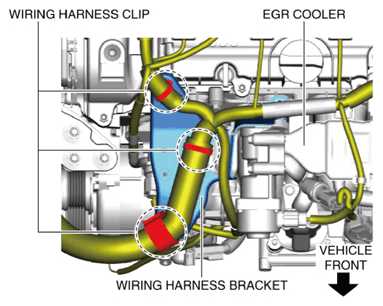

  Fig 2: Identifying Wiring Harness Clips And EGR Cooler
  Courtesy of MAZDA MOTORS CORP.
3. Remove the wiring harness bracket.
Remove the coolant reserve tank. (Refer to COOLANT RESERVE TANK REMOVAL/INSTALLATION .)
Disconnect the connectors shown in the figure.

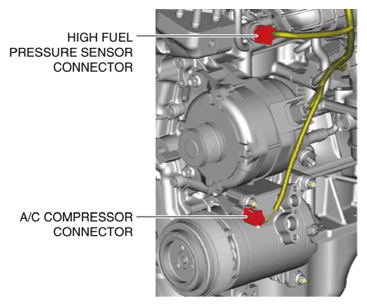

Fig 3: Identifying High Fuel Pressure Sensor And A/C Compressor Connectors
Courtesy of MAZDA MOTORS CORP.
Fully loosen the generator lower bolt and pull it outward until it contacts the body frame.
NOTE:
- The generator can be removed without fully removing the lower bolt from the engine.
Remove the generator upper bolt.
Remove the generator together with the generator lower bolt from the engine.
NOTE:
- Remove the generator from above the engine compartment.

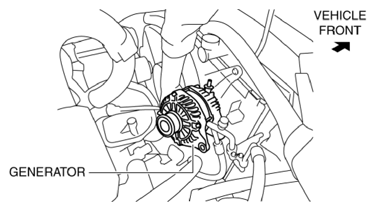

Fig 4: Identifying Generator
Courtesy of MAZDA MOTORS CORP.
