Generator Removal/Installation: Notes
WARNING:
- Remove and install all parts when the engine is cold, otherwise they can cause severe burns or serious injury.
- When the battery cables are connected, touching the vehicle body with generator terminal B will generate sparks. This can cause personal injury, fire, and damage to the electrical components. Always disconnect the negative battery terminal before performing the following operation.
- Disconnect the negative battery terminal. (Refer to NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
- Remove the front under cover No. 2. (Refer to FRONT UNDER COVER No. 2 REMOVAL/INSTALLATION .)
- Remove the front splash shield (RH). (Refer to FRONT SPLASH SHIELD REMOVAL/INSTALLATION .)
- Remove the generator drive belt. (Refer to DRIVE BELT REMOVAL/INSTALLATION .)
- Remove the drive belt auto tensioner. (Refer to DRIVE BELT AUTO TENSIONER REMOVAL/INSTALLATION .)
- Remove the plug hole plate. (Refer to PLUG HOLE PLATE REMOVAL/INSTALLATION .)
- Remove in the order indicated in the table.
- Install in the reverse order of removal.COMPONENT DESCRIPTION

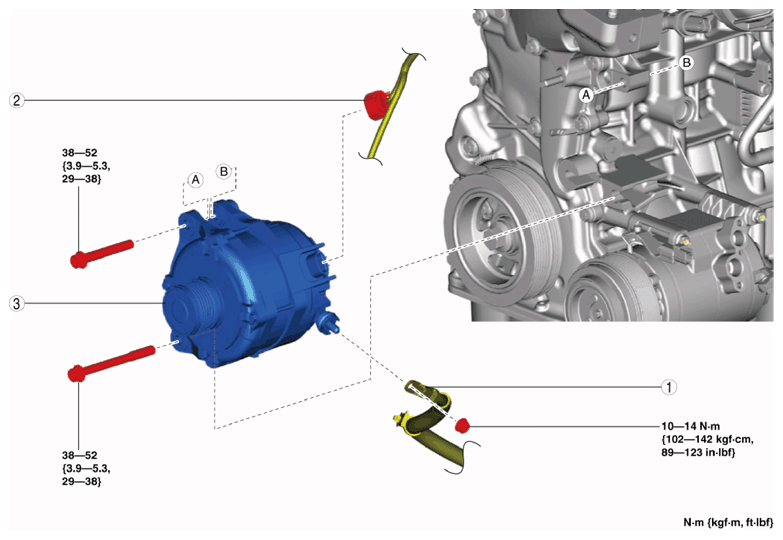

1 Terminal B cable 2 Generator connector 3 Generator
(See Generator Removal Note .)
(See Generator Installation Note .)
