Starter Installation Note
CAUTION:

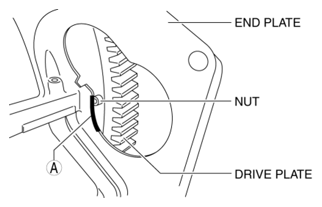

- Do not overlap the starter with the end plate (area A shown in figure) when installing. If the starter is not correctly installed, the nut installed to the drive plate may contact the end plate causing abnormal noise.
Courtesy of MAZDA MOTORS CORP.
