Bolt Installation Note

After tightening the three bolts shown in the figure, tighten the first tightened bolt to the specified tightening torque again.

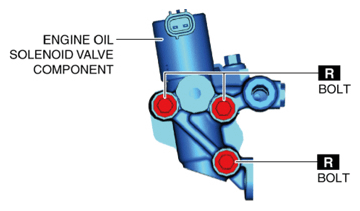

Fig 1: Identifying Engine Oil Solenoid Valve Bolts
Courtesy of MAZDA MOTORS CORP.
NOTE:
- The tightening order for the three bolts is optional.
Tightening torque
- 12-16 N. {123-163 kgf., 107-141 in.lbf}
Install the wiring harness clips and connector shown in the figure.

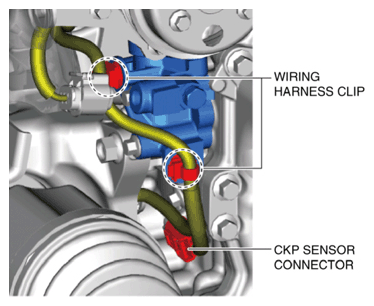

Fig 2: Identifying CKP Sensor Connector And Wiring Harness Clip
Courtesy of MAZDA MOTORS CORP.
Tighten the bolts shown in the figure.

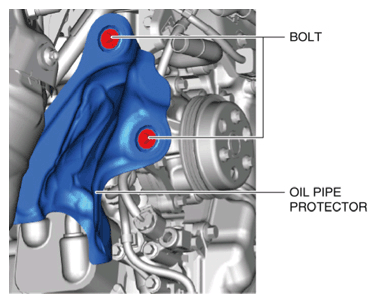

Fig 3: Identifying Oil Pipe Protector Bolts
Courtesy of MAZDA MOTORS CORP.

Tightening torque
- 8-11 N. {82-112 kgf., 71-97 in.lbf}
