Engine Oil Solenoid Valve Removal/Installation: Notes
WARNING:
- Hot engines and engine oil can cause severe burns. Turn off the engine and wait until it and the engine oil have cooled.
- A vehicle that is lifted but not securely supported on safety stands is dangerous. It can slip or fall, causing death or serious injury. Never work around or under a lifted vehicle if it is not securely supported on safety stands.
- Continuous exposure to USED engine oil has caused skin cancer in laboratory mice. Protect your skin by washing with soap and water immediately after working with engine oil.
- Disconnect the negative battery terminal. (Refer to NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
- Remove the front under cover No. 2. (Refer to FRONT UNDER COVER No. 2 REMOVAL/INSTALLATION .)
- Remove the front wheel and tire. (RH) (Refer to WHEEL AND TIRE REMOVAL/INSTALLATION .)
- Remove the front splash shield (RH). (Refer to FRONT SPLASH SHIELD REMOVAL/INSTALLATION .)
- Remove the water pump drive belt with the generator drive belt still installed and set it aside. (Refer to DRIVE BELT REMOVAL/INSTALLATION .)
- Remove the engine oil pressure sensor/engine oil temperature sensor. (Refer to ENGINE OIL PRESSURE SENSOR/ENGINE OIL TEMPERATURE SENSOR REMOVAL/INSTALLATION .)
- Remove in the order indicated in the table.
- Install in the reverse order of removal.
- Start the engine and confirm that there is no oil leakage.
- If there is oil leakage, repair or replace the applicable part.

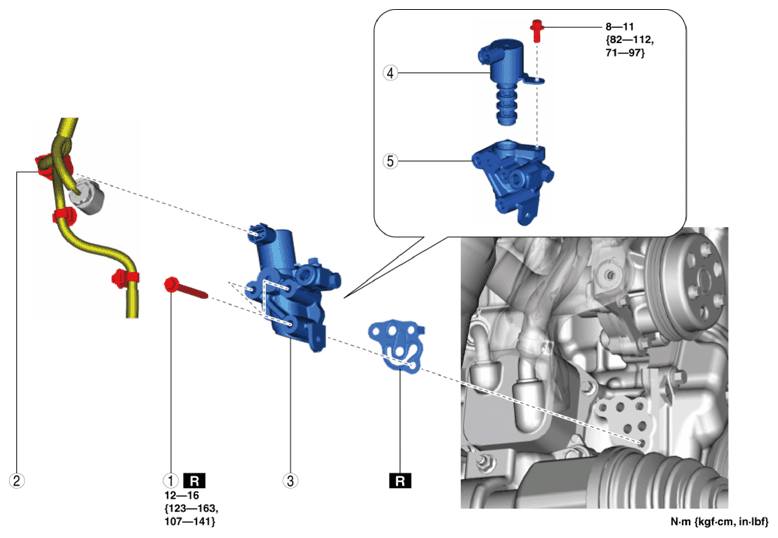

Courtesy of MAZDA MOTORS CORP.
COMPONENT DESCRIPTION1 Bolt
(See Bolt Removal Note .)
(See Bolt Installation Note .)2 Engine oil solenoid valve connector
(See Engine Oil Solenoid Valve Connector Disconnecting Note .)3 Engine oil solenoid valve component 4 Engine oil solenoid valve 5 Spacer
- If there is oil leakage, repair or replace the applicable part.
