Oil Pump Installation Note

Install the oil pump using the following procedure.
1. Temporarily tighten the three bolts shown in the figure.

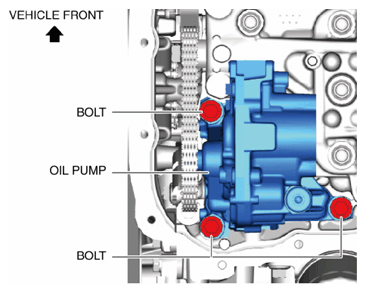

  Fig 1: Identifying Oil Pump Bolts
  Courtesy of MAZDA MOTORS CORP.
2. Tighten the two bolts shown in the figure to the specified torque.

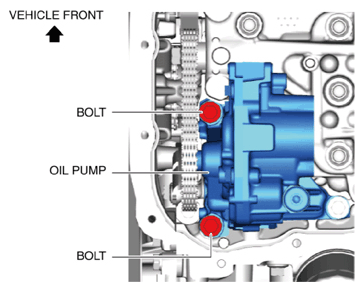

  Fig 2: Identifying Oil Pump Bolts
  Courtesy of MAZDA MOTORS CORP.
  NOTE:
  - The tightening order for the two bolts is optional.
    Tightening torque
  - 20-26 N. {2.1-2.6 kgf.m, 15-19 ft.lbf}
3. Finally, tighten the bolt shown in the figure to the specified torque.

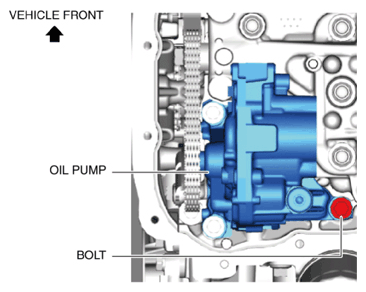

  Fig 3: Identifying Oil Pump Bolts
  Courtesy of MAZDA MOTORS CORP.

  Tightening torque
  - 20-26 N. {2.1-2.6 kgf.m, 15-19 ft.lbf}
