Engine Location Index

U.S.A. and CANADA

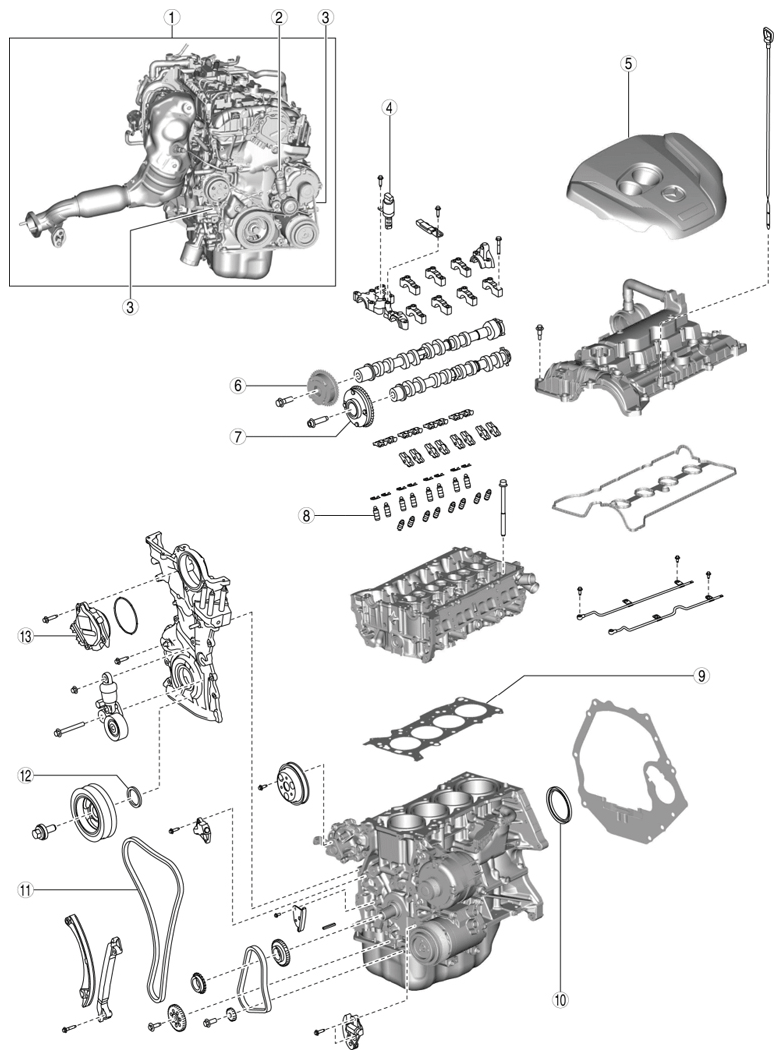

Fig 1: Identifying Engine Components (USA And Canada)

G10946311

Courtesy of MAZDA MOTORS CORP.

Except U.S.A. and CANADA

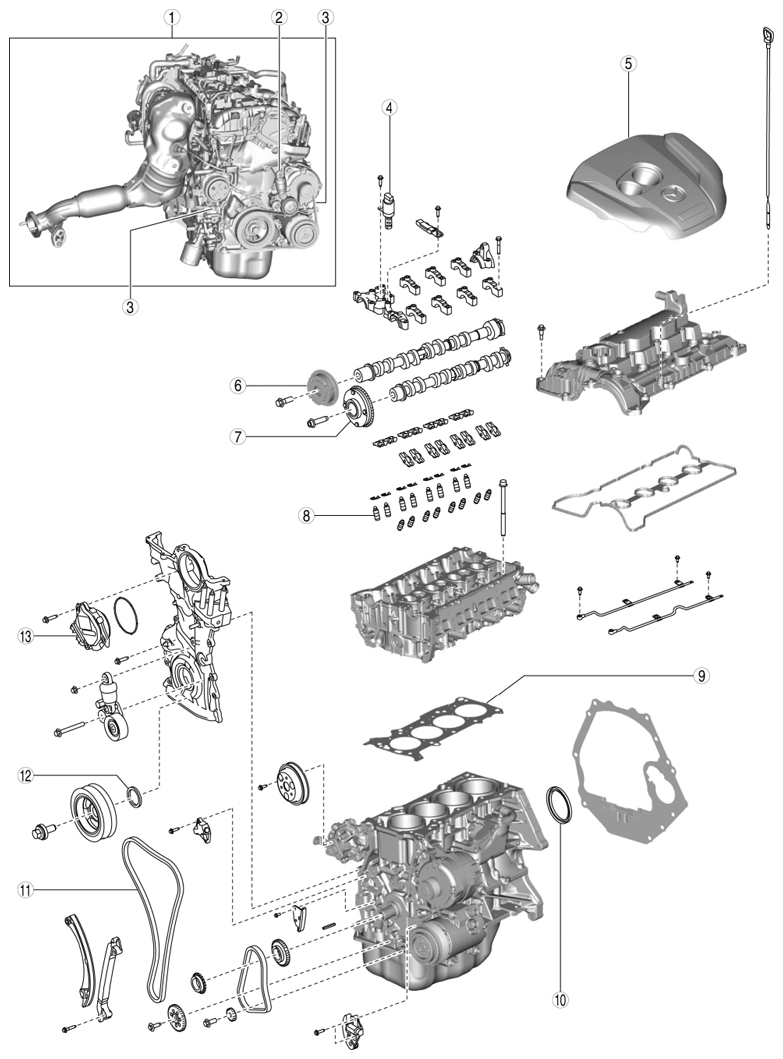

Fig 2: Identifying Engine Components (Except USA And Canada)

G10946312

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Engine (See ENGINE TUNE-UP .) (See COMPRESSION INSPECTION .) (See ENGINE MOUNT DISASSEMBLY/ASSEMBLY .) (See ENGINE REMOVAL/INSTALLATION .) (See ENGINE DISASSEMBLY/ASSEMBLY .)
2	Drive belt auto tensioner (See DRIVE BELT AUTO TENSIONER INSPECTION .) (See DRIVE BELT AUTO TENSIONER REMOVAL/INSTALLATION .)
3	Drive belt (See DRIVE BELT INSPECTION .) (See DRIVE BELT REMOVAL/INSTALLATION .)
4	OCV (See OIL CONTROL VALVE (OCV) INSPECTION .) (See OIL CONTROL VALVE (OCV) REMOVAL/INSTALLATION .)
5	Plug hole plate (See PLUG HOLE PLATE REMOVAL/INSTALLATION .)
6	Hydraulic variable valve timing actuator (See HYDRAULIC VARIABLE VALVE TIMING ACTUATOR INSPECTION .) (See ELECTRIC VARIABLE VALVE TIMING ACTUATOR, HYDRAULIC VARIABLE VALVE TIMING ACTUATOR REMOVAL/INSTALLATION .)
7	Electric variable valve timing actuator (See ELECTRIC VARIABLE VALVE TIMING ACTUATOR INSPECTION .) (See ELECTRIC VARIABLE VALVE TIMING ACTUATOR, HYDRAULIC VARIABLE VALVE TIMING ACTUATOR REMOVAL/INSTALLATION .)
8	HLA (See HYDRAULIC LASH ADJUSTER (HLA) INSPECTION .) (See HYDRAULIC LASH ADJUSTER (HLA) REMOVAL/INSTALLATION .)
9	Cylinder head gasket (See CYLINDER HEAD GASKET REPLACEMENT .)
10	Rear oil seal (See REAR OIL SEAL REPLACEMENT .)
11	Timing chain (See TIMING CHAIN REMOVAL/INSTALLATION .)
12	Front oil seal (See FRONT OIL SEAL REPLACEMENT .)
13	Electric variable valve timing motor/driver (See ELECTRIC VARIABLE VALVE TIMING MOTOR/DRIVER INSPECTION .) (See ELECTRIC VARIABLE VALVE TIMING MOTOR/DRIVER REMOVAL/INSTALLATION .)
