PCM Component Installation Note

Install the PCM component using the following procedure:
1. Return the PCM component that was set aside to its original position.
2. Temporarily tighten the bolt shown in the figure.

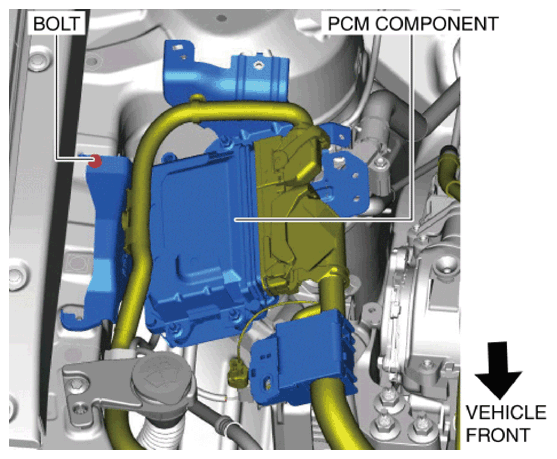

  Fig 1: Identifying PCM Component And Bolt
  Courtesy of MAZDA MOTORS CORP.
3. Tighten the PCM component installation bolts in the order shown in the figure.

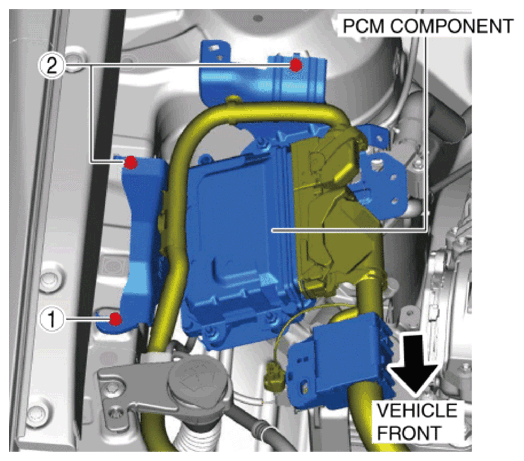

  Fig 2: PCM Component Installation Bolts Tightening Sequence
  Courtesy of MAZDA MOTORS CORP.

  Tightening torque
  - 9-10 N.m {92-101 kgf.cm, 80-88 in.lbf}
4. Install the wiring harness protector and connector.

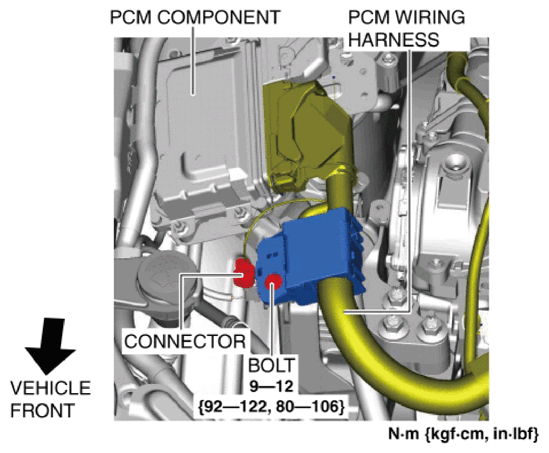

  Fig 3: Installing Wiring Harness Protector And Connector
  Courtesy of MAZDA MOTORS CORP.
5. Install the ground cable shown in the figure.

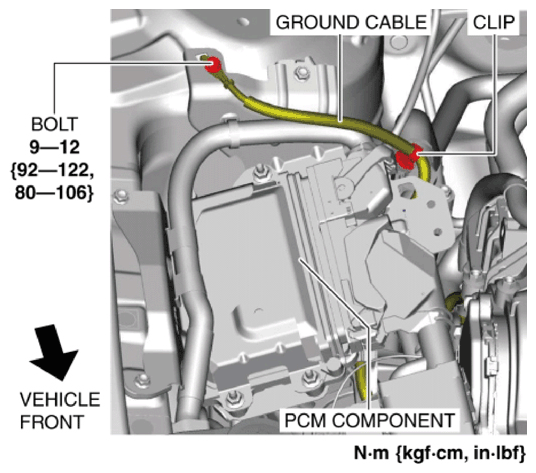

  Fig 4: Installing Ground Cable
  Courtesy of MAZDA MOTORS CORP.
