Boost Pressure Sensor/Boost Air Temperature Sensor Removal/Installation

NOTE:

The boost pressure sensor and boost air temperature sensor cannot be removed as a single unit. When replacing the boost pressure sensor or boost air temperature sensor, replace the boost pressure sensor/boost air temperature sensor.

Disconnect the negative battery terminal. (Refer to NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Remove the front bumper. (Refer to FRONT BUMPER REMOVAL .) (Refer to FRONT BUMPER INSTALLATION .)
Remove the fastener.

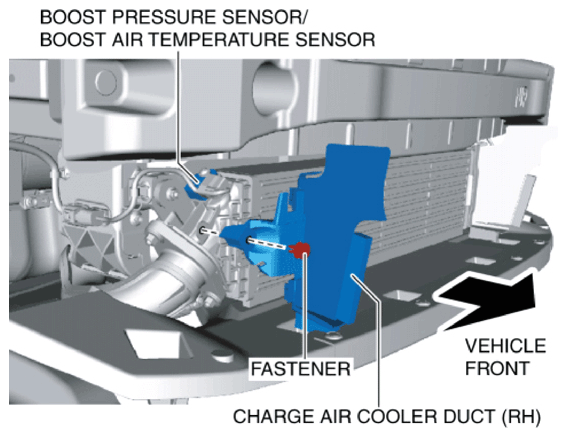

Fig 1: Removing Charge Air Cooler Duct (RH)
Courtesy of MAZDA MOTORS CORP.
Remove the charge air cooler duct (RH).
Disconnect the boost pressure sensor/boost air temperature sensor connector.

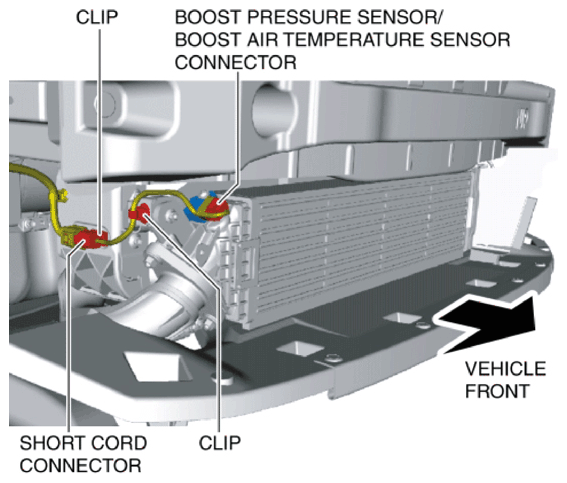

Fig 2: Disconnecting Boost Pressure Sensor/Boost Air Temperature Sensor Connector
Courtesy of MAZDA MOTORS CORP.
Remove the charge air cooler. (Refer to CHARGE AIR COOLER REMOVAL/INSTALLATION .)
Remove the screw.

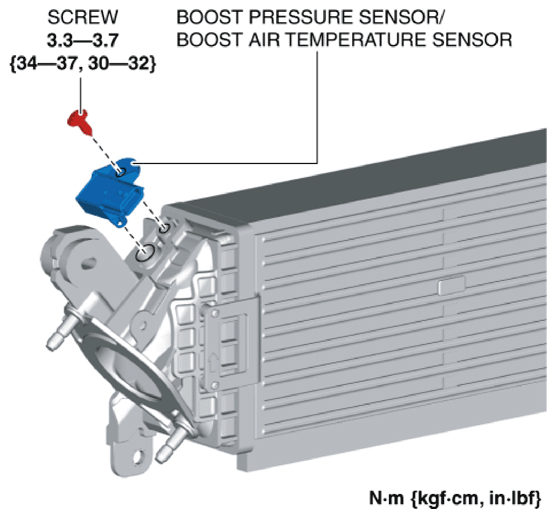

Fig 3: Removing Boost Pressure Sensor/Boost Air Temperature Sensor
Courtesy of MAZDA MOTORS CORP.
Remove the boost pressure sensor/boost air temperature sensor.
Install in the reverse order of removal.
