Exhaust CMP Sensor

  1. Disconnect the negative battery terminal. (Refer to NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the plug hole plate. (Refer to PLUG HOLE PLATE REMOVAL/INSTALLATION .)
  3. Disconnect the exhaust CMP sensor connector.
  4. Remove the bolt.

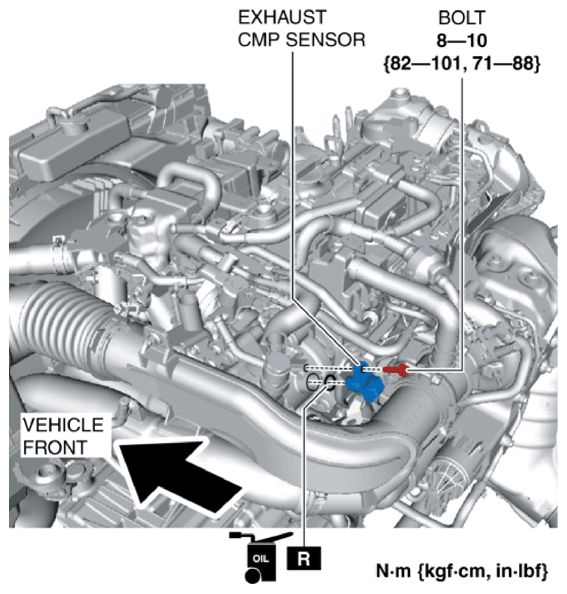

    Fig 1: Disconnecting Exhaust CMP Sensor Connector
    G10947157Courtesy of MAZDA MOTORS CORP.
  5. Remove the exhaust CMP sensor.
  6. Install in the reverse order of removal.
