Intake CMP Sensor

  1. Disconnect the negative battery terminal. (Refer to NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the plug hole plate. (Refer to PLUG HOLE PLATE REMOVAL/INSTALLATION .)
  3. Remove the intake manifold. (Refer to INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
  4. Disconnect the intake CMP sensor connector.
  5. Remove the bolt.

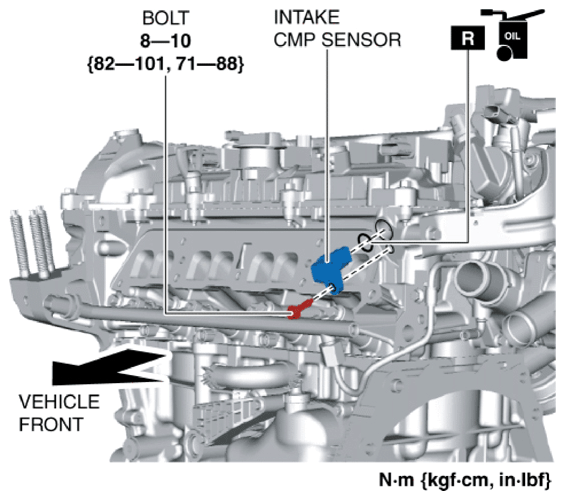

    Fig 1: Disconnecting Intake CMP Sensor Connector
    G10947156Courtesy of MAZDA MOTORS CORP.
  6. Remove the intake CMP sensor.
  7. Install in the reverse order of removal.
