Control System Location Index

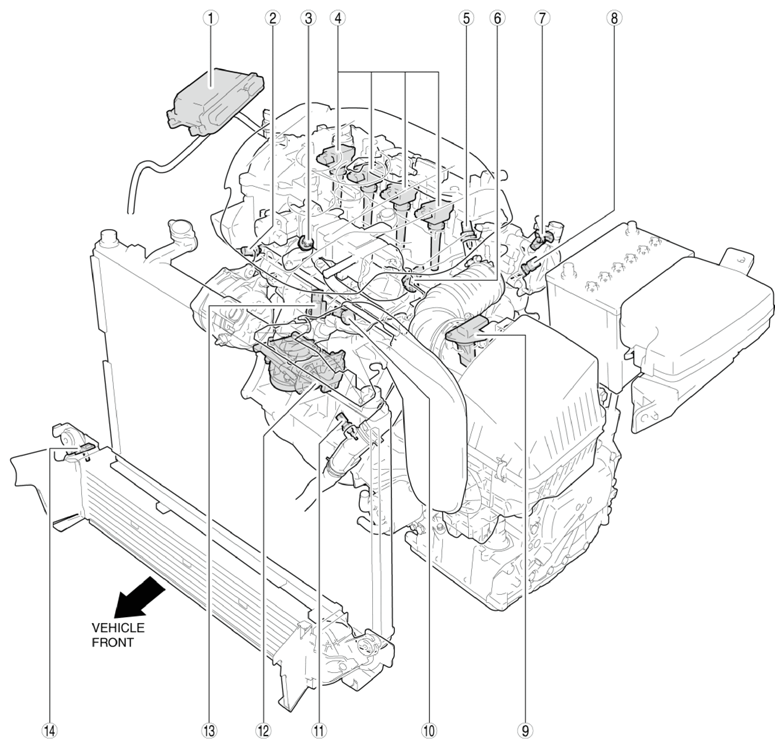

Fig 1: Control System Components Location (SKYACTIV-G 2.5T; 1 Of 2)

G10947062

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	PCM (BARO sensor, PCM temperature sensor) (See PCM REMOVAL/INSTALLATION .) (See PCM INSPECTION .) (See PCM CONFIGURATION (USING READ/WRITE FUNCTION) .) (See PCM CONFIGURATION (USING AS-BUILT DATA) .) (See BAROMETRIC PRESSURE (baro) SENSOR REMOVAL/installation .) (See BAROMETRIC PRESSURE (baro) SENSOR inspection .)
2	High fuel pressure sensor (See high fuel pressure SENSOR removal/installation .) (See HIGH fuel pressure SENSOR inspection .)
3	Exhaust gas pressure sensor (See EXHAUST GAS PRESSURE SENSOR REMOVAL/INSTALLATION .) (See exhaust gas pressure SENSOR INSPECTION .)
4	Ion sensor (See ION SENSOR REMOVAL/INSTALLATION .) (See ION SENSOR inspection .)
5	Low fuel pressure sensor/Fuel temperature sensor (See LOW FUEL PRESSURE SENSOR/FUEL TEMPERATURE SENSOR REMOVAL/INSTALLATION .) (See LOW FUEL PRESSURE SENSOR INSPECTION .) (See FUEL TEMPERATURE SENSOR INSPECTION .)
6	intake CMP sensor-(See CAMSHAFT POSITION (CMP) SENSOR REMOVAL/installation .) (See CAMSHAFT position (CMP) SENSOR INSPECTION .)
7	Exhaust CMP sensor-(See CAMSHAFT position (CMP) SENSOR REMOVAL/installation .) (See CAMSHAFT position (CMP) SENSOR inspection .)
8	ECT sensor No. 1 (See engine coolant temperature (ect) SENSOR REMOVAL/installation .) (See ENGINE COOLANT temperature (ECT) SENSOR INSPECTION .)
9	Maf sensor/IAT sensor No. 1 (See MASS AIR FLOW (MAF) SENSOR/INTAKE AIR TEMPERATURE (IAT) SENSOR NO. 1 REMOVAL/INSTALLATION .) (See MASS AIR FLOW (MAF) SENSOR INSPECTION .) (See INTAKE AIR TEMPERATURE (IAT) SENSOR INSPECTION .)
10	KS (See KNOCK SENSOR (KS) removal/installation .) (See KNOCK SENSOR (KS) inspection .)
11	ECT sensor No. 2 (U.S.A. and CANADA) (See ENGINE COOLANT TEMPERATURE (ECT) SENSOR REMOVAL/INSTALLATION .) (See engine coolant temperature (ect) SENSOR inspection .)
12	TP sensor (See throttle position (TP) SENSOR REMOVAL/installation .) (See THROTTLE position (TP) SENSOR inspection .)
13	Map sensor/IAT sensor No. 2 (See MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR/INTAKE AIR TEMPERATURE (IAT) SENSOR NO. 2 REMOVAL/INSTALLATION .) (See MANIFOLD absolute PRESSURE (MAP) SENSOR INSPECTION .) (See INTAKE AIR TEMPERATURE (IAT) SENSOR INSPECTION .)
14	Boost pressure sensor/Boost air temperature sensor (See boost pressure SENSOR/boost air temperature SENSOR REMOVAL/installation .) (See boost pressure sensor inspection .) (See boost AIR TEMPERATURE SENSOR INSPECTION .)

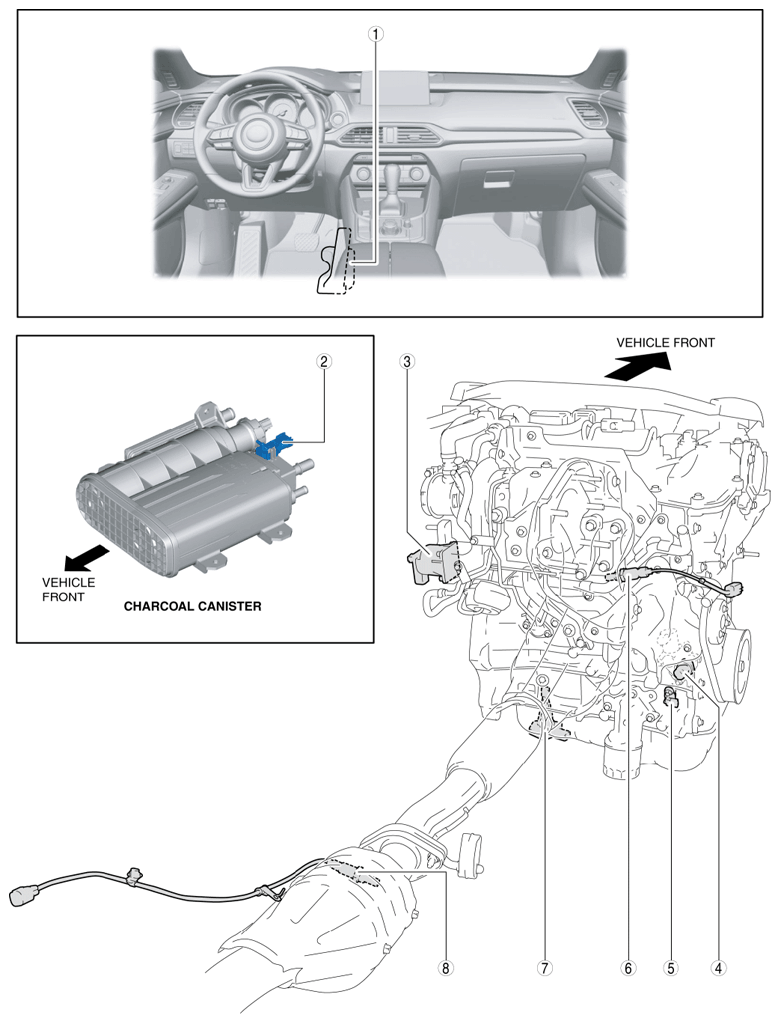

Fig 2: Control System Components Location (SKYACTIV-G 2.5T; 2 Of 2)

G10947064

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	APP sensor (See ACCELERATOR PEDAL POSITION (APP) SENSOR REMOVAL/INSTALLATION .) (See ACCELERATOR PEDAL POSITION (APP) SENSOR INSPECTION .)
2	Fuel tank pressure sensor (U.S.A. and CANADA) (See FUEL TANK PRESSURE SENSOR REMOVAL/INSTALLATION .) (See FUEL TANK PRESSURE SENSOR INSPECTION .)
3	Wastegate valve position sensor (See WASTEGATE VALVE POSITION SENSOR REMOVAL/INSTALLATION .) (See WASTEGATE VALVE POSITION SENSOR INSPECTION .)
4	Engine oil pressure sensor/Engine oil temperature sensor (See ENGINE OIL PRESSURE SENSOR/ENGINE OIL TEMPERATURE SENSOR REMOVAL/INSTALLATION .) (See ENGINE OIL PRESSURE SENSOR INSPECTION .) (See ENGINE OIL TEMPERATURE SENSOR INSPECTION .)
5	CKP sensor (See CRANKSHAFT POSITION (CKP) SENSOR REMOVAL/INSTALLATION .) (See CRANKSHAFT POSITION (CKP) SENSOR INSPECTION .)
6	A/F sensor (See AIR FUEL RATIO (A/F) SENSOR REMOVAL/INSTALLATION .) (See AIR FUEL RATIO (A/F) SENSOR INSPECTION .)
7	Engine oil level sensor (See ENGINE OIL LEVEL SENSOR REMOVAL/INSTALLATION .) (See ENGINE OIL LEVEL SENSOR INSPECTION .)
8	HO2S (See HEATED OXYGEN SENSOR (HO2S) REMOVAL/INSTALLATION .) (See HEATED OXYGEN SENSOR (HO2S) INSPECTION .)
