Control System Wiring Diagram

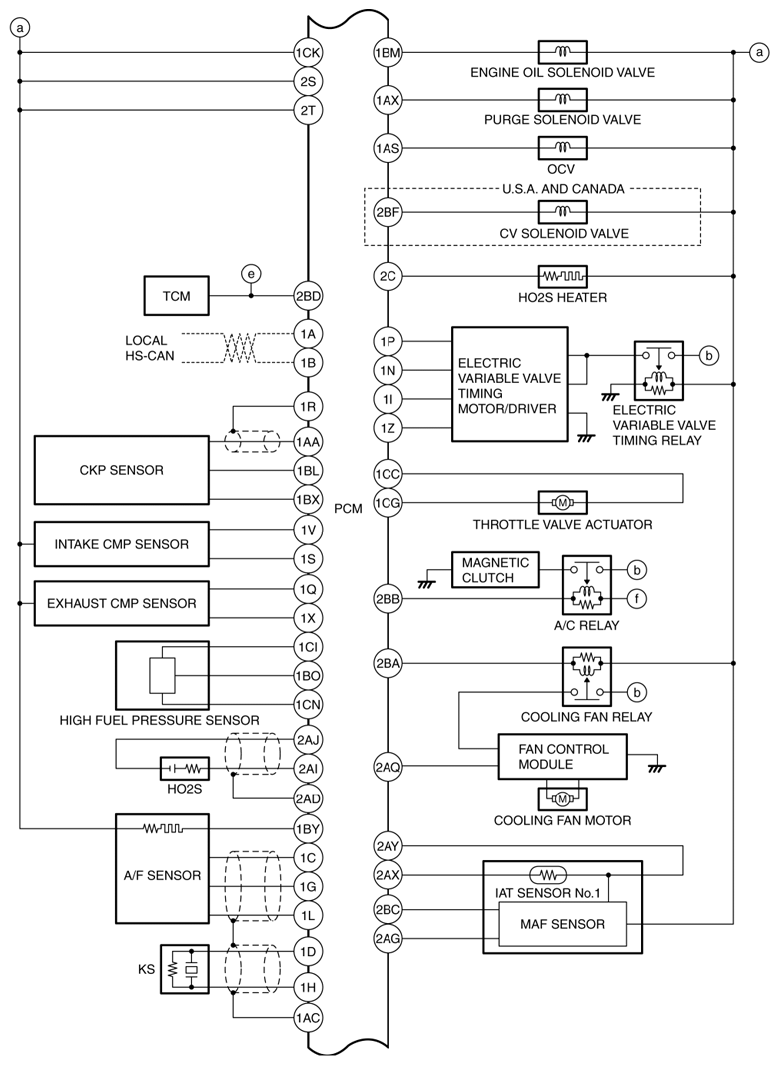

Fig 1: Control System Wiring Diagram (SKYACTIV-G 2.5T; 1 Of 4)
Courtesy of MAZDA MOTORS CORP.

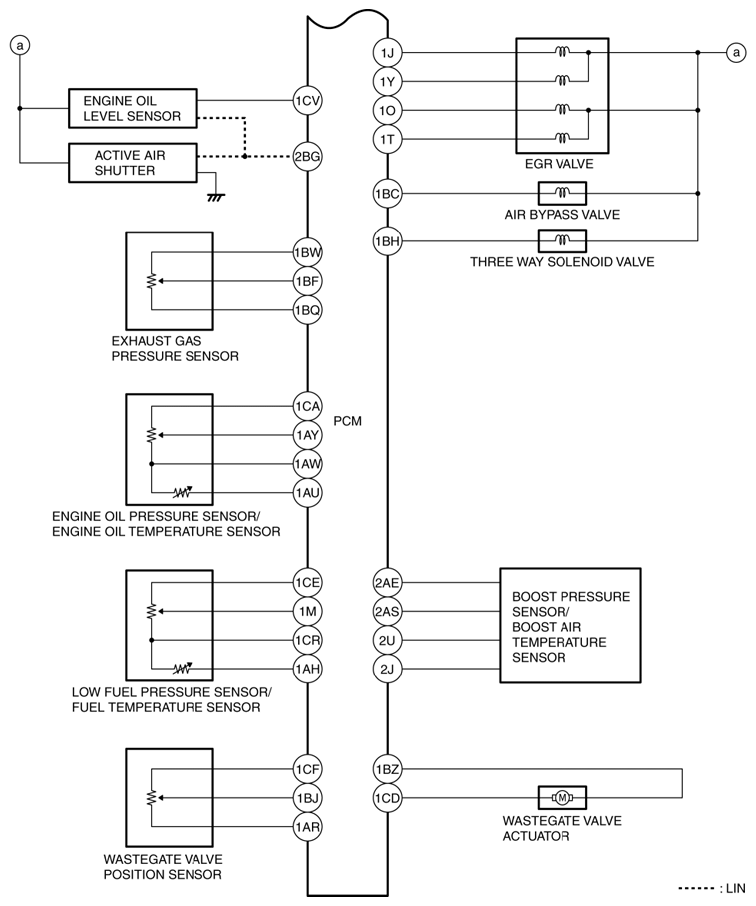

Fig 2: Control System Wiring Diagram (SKYACTIV-G 2.5T; 2 Of 4)
Courtesy of MAZDA MOTORS CORP.

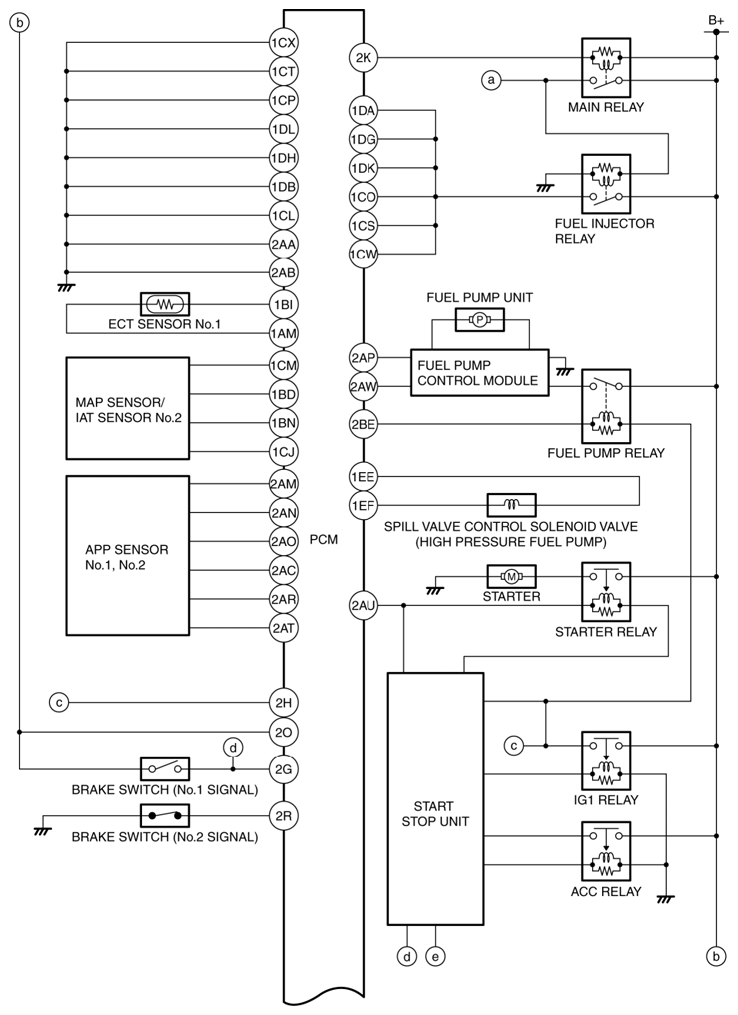

Fig 3: Control System Wiring Diagram (SKYACTIV-G 2.5T; 3 Of 4)
Courtesy of MAZDA MOTORS CORP.

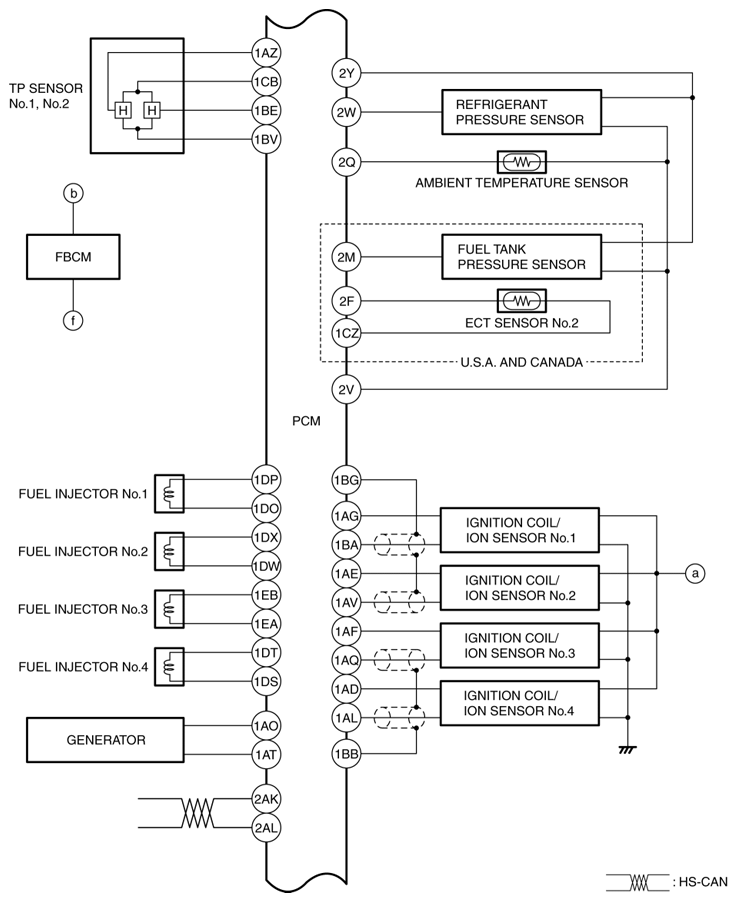

Fig 4: Control System Wiring Diagram (SKYACTIV-G 2.5T; 4 Of 4)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
