In fixed setting

Reset using both (A) MAZDA CONNECT center display and (B) instrument cluster illumination knob. This resets remaining oil life based on selected distance or engine operating conditions, which ever comes first.

1. MAZDA CONNECT reset:

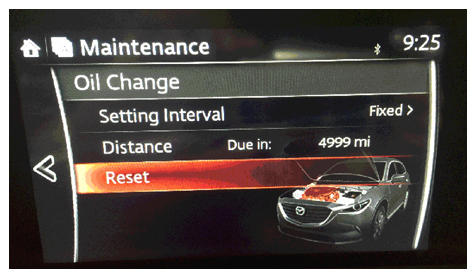

   Fig 1: Screen Display - Mazda Connect Reset (2 of 2)

   Courtesy of MAZDA MOTORS CORP.
2. Instrument Cluster illumination knob reset:
   1. Switch the ignition ON (engine off) and switch the display using the panel light control switch/tripmeter switch to display the odometer.
      CAUTION:

      • The tripmeter and average fuel economy are reset when the following procedures are performed with tripmeter A or B displayed.
   2. Switch the ignition OFF (LOCK).
   3. Press and hold the panel light control switch/tripmeter switch with the ignition switched off, then switch the ignition ON (engine off).
      • Keep pressing the panel light control switch/tripmeter switch for more than 7 s  .
        • Equipped without Multi-Information Display - Wrench indicator light blinks when reset is complete.
        • Equipped with Multi-Information Display - No indication when reset is complete.

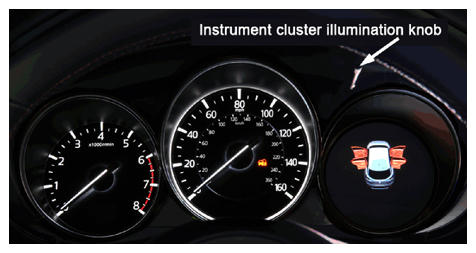

          Fig 2: Screen Display - Instrument Cluster Illumination Knob Reset

          Courtesy of MAZDA MOTORS CORP.
