PID/DATA Monitor Inspection

Verify that there is no engine oil leakage.
- If there is any malfunction, repair or replace the malfunctioning part according to the inspection results.
Inspect the engine oil level. (Refer to ENGINE OIL LEVEL INSPECTION .)
Switch the ignition ON (engine off).
Access the PID/DATA monitor item OIL_LEVEL using the M-MDS. (Refer to ON-BOARD DIAGNOSTIC TEST [PCM (SKYACTIV-G 2.5T)] .)

Verify that the PID OIL_LEVEL value and the engine oil amount measured using the dipstick are same.

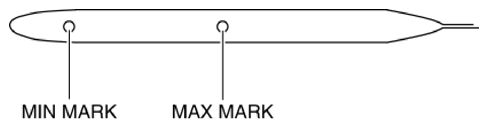

Fig 1: Identifying Engine Oil Level On Dipstick

Courtesy of MAZDA MOTORS CORP.

ENGINE OIL LEVEL SENSOR OUTPUT VALUE REFERENCE

Dipstick	PID OIL_LEVEL value
Close to MAX	Approx. 72.3 mm {2.85 in}
Close to MIN	Approx. 54.3 mm {2.14 in}

If it cannot be verified, replace the engine oil level sensor. (Refer to ENGINE OIL LEVEL SENSOR REMOVAL/INSTALLATION .)
