Resistance Inspection
NOTE:
- The engine oil pressure sensor and engine oil temperature sensor cannot be removed as a single unit. When replacing the engine oil temperature sensor, replace the engine oil pressure sensor/engine oil temperature sensor.
- Turn the steering wheel to full right lock.
- Disconnect the negative battery terminal. (Refer to NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
- Lift up the vehicle.
- Remove the front splash shield (RH). (Refer to FRONT SPLASH SHIELD REMOVAL/INSTALLATION .)
- Disconnect the engine oil pressure sensor/engine oil temperature sensor connector. (Refer to ENGINE OIL PRESSURE SENSOR/ENGINE OIL TEMPERATURE SENSOR REMOVAL/INSTALLATION .)

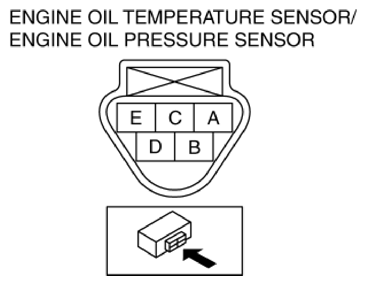

- Measure the resistance between engine oil pressure sensor/engine oil temperature sensor terminals E and C.
Courtesy of MAZDA MOTORS CORP.
- If not as specified, replace the engine oil pressure sensor/engine oil temperature sensor. (Refer to ENGINE OIL PRESSURE SENSOR/ENGINE OIL TEMPERATURE SENSOR REMOVAL/INSTALLATION .)

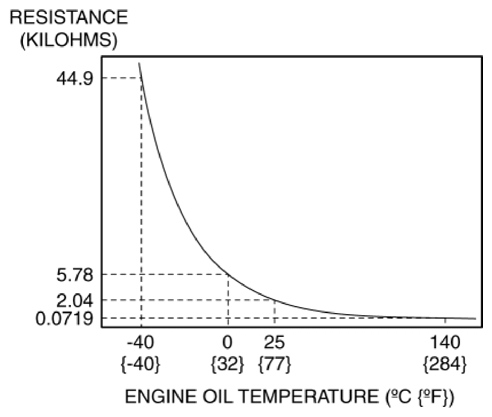

RESISTANCE SPECIFICATIONEngine oil temperature (°C {°F}) Resistance (Kilohms) -40 {-40} Approx. 44.9 0 Approx. 5.78 25 Approx. 2.04 140 Approx. 0.0719
