Resistance Inspection
NOTE:
- The low fuel pressure sensor/fuel temperature sensor cannot be removed as a single unit. When replacing the low fuel pressure sensor/fuel temperature sensor, replace it together with the high pressure fuel pump as a single unit.
- Disconnect the negative battery terminal. (Refer to NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
- Remove the plug hole plate. (Refer to PLUG HOLE PLATE REMOVAL/INSTALLATION .)
- Disconnect the low fuel pressure sensor/fuel temperature sensor connector.

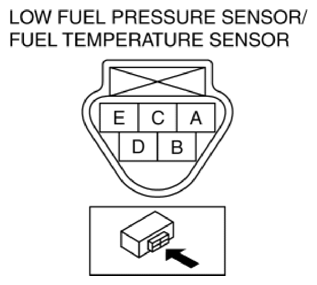

- Measure the resistance between low fuel pressure sensor/fuel temperature sensor terminals E and C.
Courtesy of MAZDA MOTORS CORP.
- If not as specified, replace the high pressure fuel pump. (Refer to HIGH PRESSURE FUEL PUMP REMOVAL/INSTALLATION .)

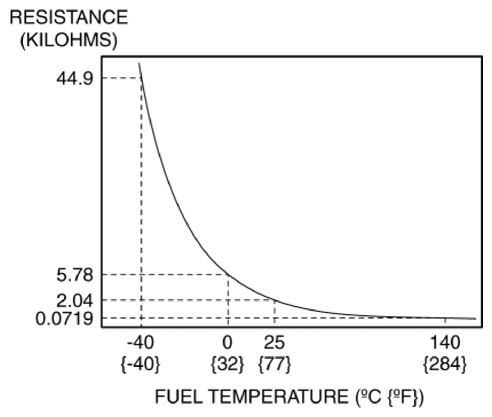

RESISTANCE SPECIFICATIONFuel temperature (°C {°F}) Resistance (Kilohms) -40 {-40} Approx. 44.9 0 Approx. 5.78 25 Approx. 2.04 140 Approx. 0.0719
