Resistance inspection
NOTE:
- The MAP sensor and IAT sensor No. 2 cannot be removed as a single unit. When replacing the IAT sensor No. 2, replace the MAP sensor/IAT sensor No. 2.
- Disconnect the negative battery terminal. (Refer to NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
- Remove the MAP sensor/IAT sensor No. 2. (Refer to MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR/INTAKE AIR TEMPERATURE (IAT) SENSOR NO. 2 REMOVAL/INSTALLATION .)
- Measure the resistance between MAP sensor/IAT sensor No. 2 terminals A and B.
- If not as specified, replace the MAP sensor/IAT sensor No. 2. (Refer to MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR/INTAKE AIR TEMPERATURE (IAT) SENSOR NO. 2 REMOVAL/INSTALLATION .)

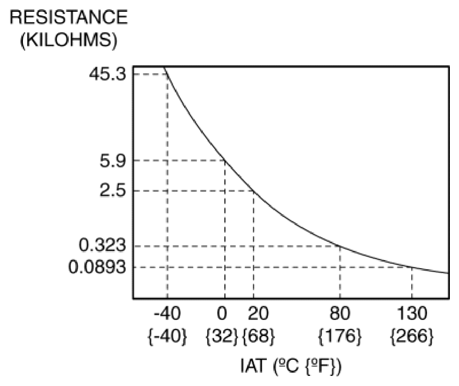

RESISTANCE SPECIFICATIONIAT (°C {°F}) Resistance (Kilohms) 0 Approx. 5.9 20 Approx. 2.5 80 Approx. 0.323 130 Approx. 0.0893
