Knock Sensor (KS) Removal/Installation: Notes

Disconnect the negative battery terminal. (Refer to NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Remove the plug hole plate. (Refer to PLUG HOLE PLATE REMOVAL/INSTALLATION .)
Remove the intake manifold. (Refer to INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
Remove the bolts.

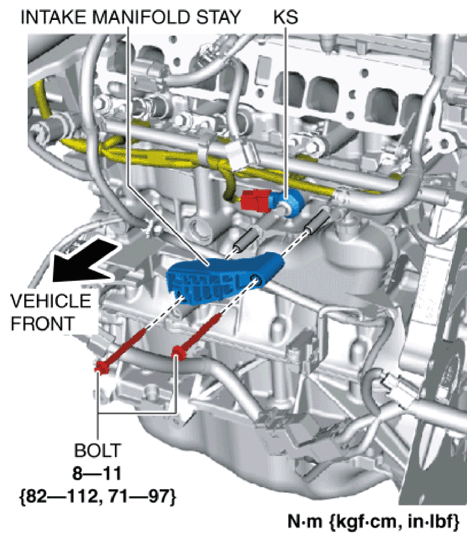

Fig 1: Removing Bolts
Courtesy of MAZDA MOTORS CORP.
Remove the intake manifold stay.
Disconnect the KS connector.
Remove the bolt.

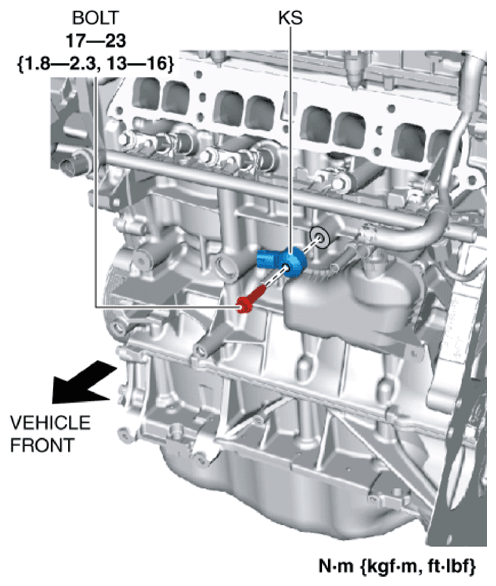

Fig 2: Disconnecting KS Connector
Courtesy of MAZDA MOTORS CORP.
Remove the KS. (Refer to KS INSTALLATION NOTE .)
Install in the reverse order of removal.
