PCM Connector Connection Note

CAUTION:
  • Do not touch the PCM connector terminal. The terminal is extremely thin and can be damaged by touching it.
  • If the PCM connector is inserted at an angle and the lever is moved, the connector could be damaged. Verify that the PCM connector is inserted straight.

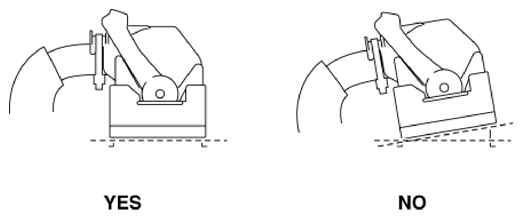

Fig 1: Identifying PCM Connector Angle
G10947082Courtesy of MAZDA MOTORS CORP.
  1. Set the PCM connector lever to the position shown in the figure.

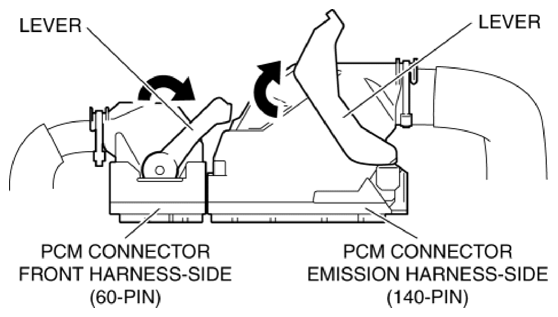

    Fig 2: Setting PCM Connector Lever To Position
    G10947083Courtesy of MAZDA MOTORS CORP.
  2. Align the PCM connector straight against the connection surface.

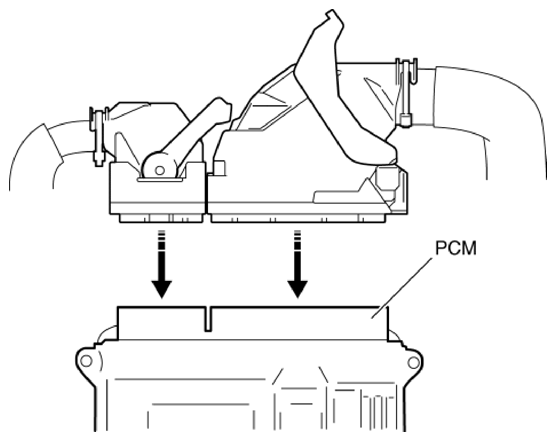

    Fig 3: Aligning PCM Connector Connection Surface
    G10947084Courtesy of MAZDA MOTORS CORP.
  3. Insert the PCM connector straight and press it in until the lever moves up naturally. (Front harness-side connector)

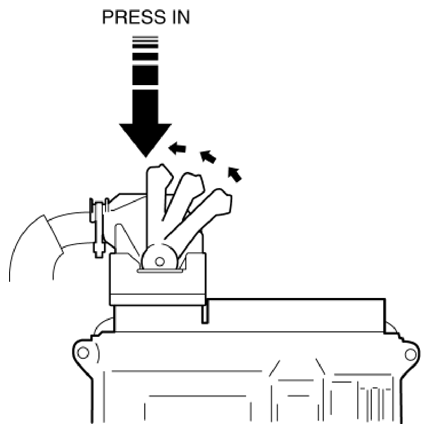

    Fig 4: Inserting PCM Connector
    G10947085Courtesy of MAZDA MOTORS CORP.
  4. Press the PCM connector lever until a click sound is heard.

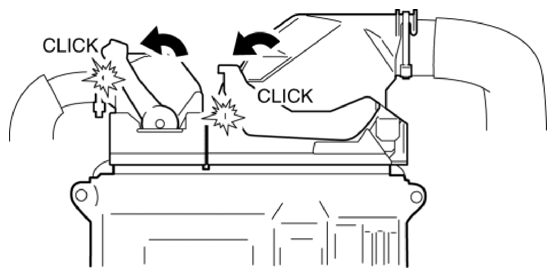

    Fig 5: Pressing PCM Connector Lever Until Click Sound Heard
    G10947086Courtesy of MAZDA MOTORS CORP.
