Without using M-MDS

Disconnect the negative battery terminal. (Refer to NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Remove the fuel pump relay.

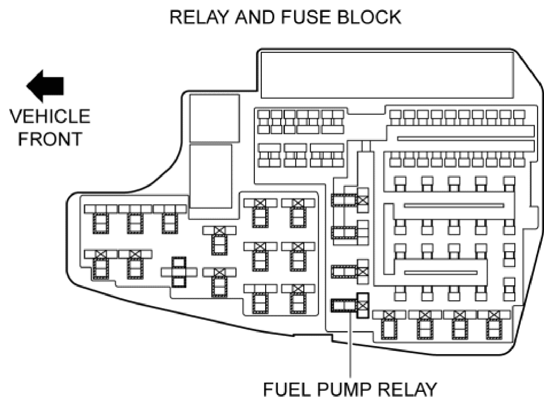

Fig 1: Identifying Fuel Pump Relay
Courtesy of MAZDA
CAUTION:
- Short the specified terminals because shorting the wrong terminal of the relay and fuse block may cause malfunctions.
Using a jumper wire, short fuel pump relay terminals C and D in the relay and fuse block.

Fig 2: Shorting Fuel Pump Relay Terminals Using Jumper Wire
Courtesy of MAZDA
Connect the negative battery terminal and operate the fuel pump. (Refer to NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Verify that there is no fuel leakage from the serviced parts.
Standard
- There shall be no leakage after 5 min.
In the case of fuel leakage, replace the following components and then recheck using the fuel leakage checking procedure.
- If there is leakage, replace the fuel hoses and clips.
- If there is damage on the seal on the fuel pipe side, replace the fuel pipe.
