Teflon Seal Installation Note

NOTE:

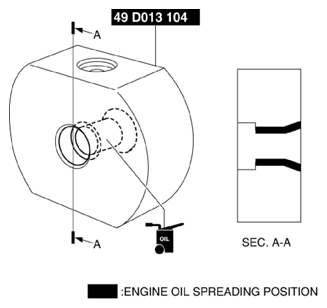

Apply engine oil to the SST .

Fig 1: Applying Engine Oil To SST
Courtesy of MAZDA

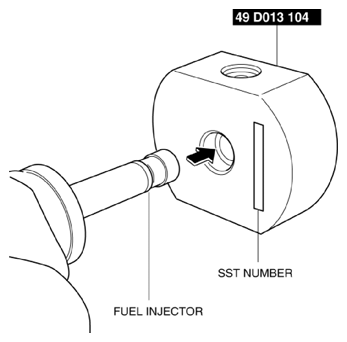

Install the SST with the mark on the SST facing the fuel injector.

Fig 2: Installing SST With Mark On SST Facing Fuel Injector
Courtesy of MAZDA

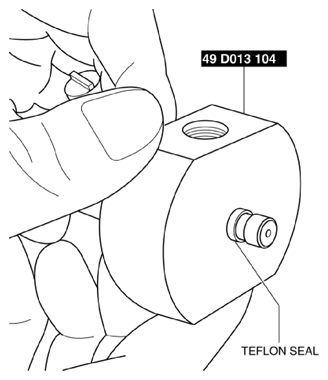

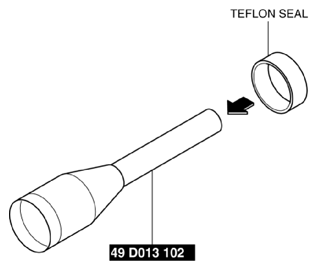

Insert a new Teflon seal onto the SST .

Fig 3: Inserting Teflon Seal Onto SST
Courtesy of MAZDA

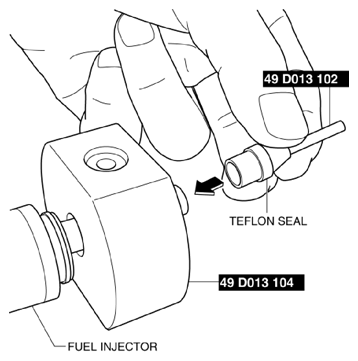

Install the SST equipped with the Teflon seal to the end of the fuel injector.

Fig 4: Installing SST To Fuel Injector End
Courtesy of MAZDA

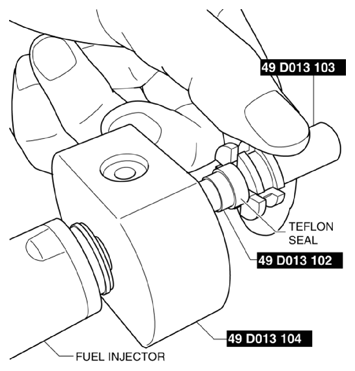

Using the SST, press on the Teflon seal to the fuel injector side.

Fig 5: Pressing On Teflon Seal To Fuel Injector Side Using SST
Courtesy of MAZDA
Press on the Teflon seal to the position indicated in the figure, then remove the SST.

Fig 6: Pressing On Teflon Seal To Position
Courtesy of MAZDA

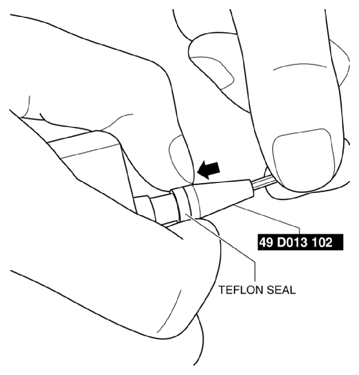

Install the Teflon seal to the fuel injector by hand and remove the SST.

Fig 7: Installing Teflon Seal To Fuel Injector
Courtesy of MAZDA
Slide the SST to the end of the fuel injector.

Fig 8: Sliding SST To Fuel Injector End
Courtesy of MAZDA

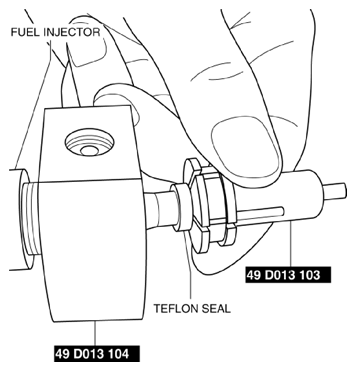

Hold the SST at the position shown in the figure and correctly position the Teflon seal for more than 30 sec.

Fig 9: Holding SST At Position
Courtesy of MAZDA
