Fuel Pump Control Module Removal/Installation

  1. Disconnect the negative battery terminal. (Refer to NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the trunk side trim (LH). (Refer to TRUNK SIDE TRIM REMOVAL/INSTALLATION .)
  3. Remove in the order indicated in the table.

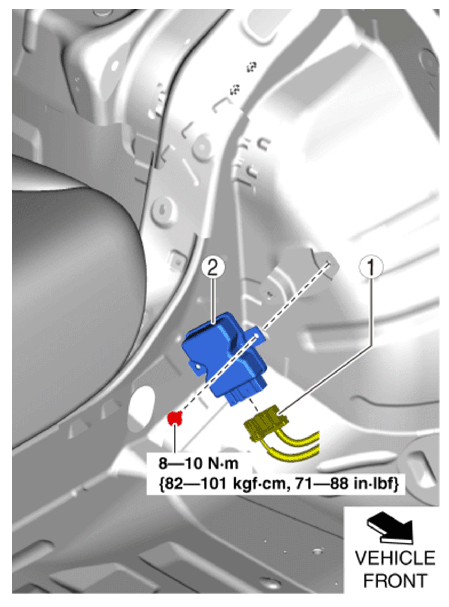

    Fig 1: Identifying Fuel Pump Control Module Bolts With Torque Specifications
    G10946891Courtesy of MAZDA
    COMPONENT DESCRIPTION

    1 Fuel pump control module connector
    2 Fuel pump control module
  4. Install in the reverse order of removal.
