Fuel Tank Inspection: AWD
- Perform the following procedure to verify the fuel tank airtightness.

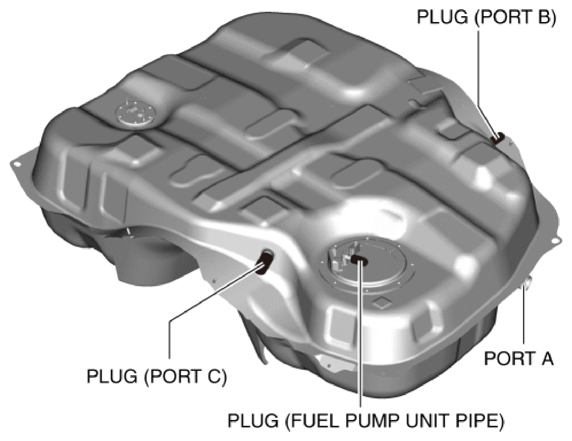

- Plug the fuel pump unit pipe, ports B and C.
Courtesy of MAZDA
- Apply a pressure of 3 kPa {23 mmHg, 0.9 inHg
} to port A and wait for a while.
- Verify that there is no air flow leakage from the fuel tank.

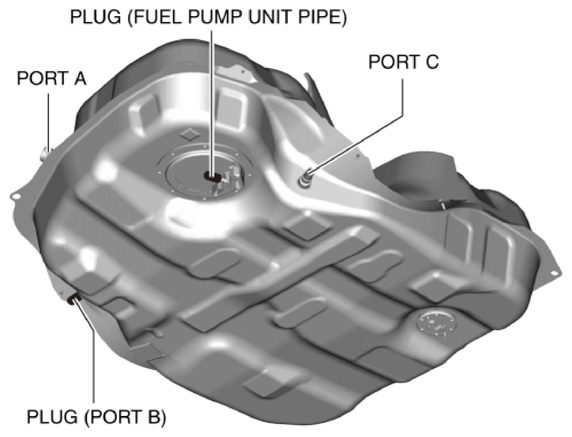

- Plug the fuel pump unit pipe and port B.
Courtesy of MAZDA
- Level the fuel tank.
- Apply a pressure of 3 kPa {23 mmHg, 0.9 inHg
} to port A and wait for a while.
- With the pressure still applied, verify that there is air flow from port C and the pressure is 0-3 kPa {0-23 mmHg, 0-0.9 inHg}.
- Apply a pressure of -0.5 kPa {-3.8 mmHg, -0.1 inHg} to port A and wait for a while.
- With the pressure still applied, verify that there is air flow from port C and the pressure is - 0.5-0 kPa {-3.8-0 mmHg, -0.1-0 inHg
}.

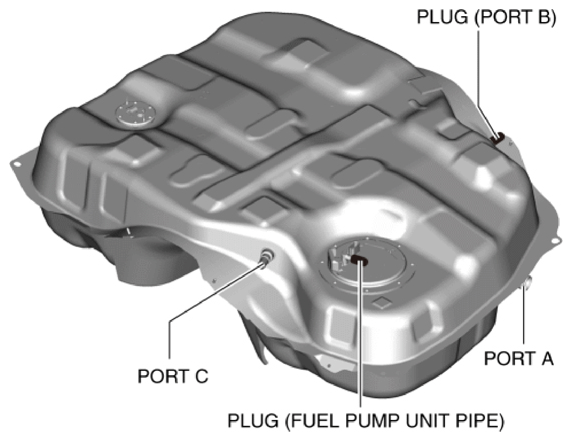

- Apply a pressure to port A and wait for a while.
Courtesy of MAZDA
- With the pressure still applied, verify that there is no air flow from port C.
