Except U.S.A. And CANADA: Notes
- Level the vehicle.
- Complete the "BEFORE SERVICE PRECAUTION". (Refer to BEFORE SERVICE PRECAUTION .)
- Drain the fuel. (Refer to FUEL DRAINING PROCEDURE .)
- Open the fuel-filler lid.
- Remove the rear wheel and tire (LH). (Refer to WHEEL AND TIRE REMOVAL/INSTALLATION .)
- Remove the rear mudguard (LH). (Refer to REAR MUDGUARD REMOVAL/INSTALLATION .)
- Remove the floor under cover No. 2 (LH). (Refer to FLOOR UNDER COVER REMOVAL/INSTALLATION .)
- Remove in the order indicated in the table.
- Install in the reverse order of removal.

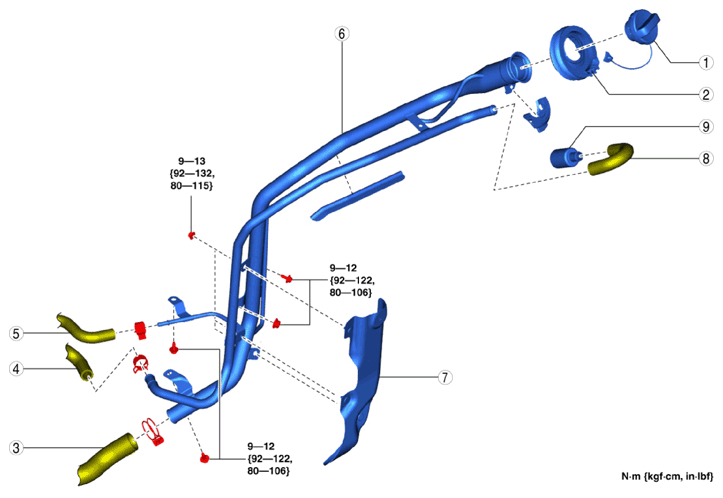

- Complete the "AFTER SERVICE PRECAUTION". (Refer to AFTER SERVICE PRECAUTION .)COMPONENT DESCRIPTION
1 Fuel-filler cap 2 Dust cover
(See Dust cover removal note (except U.S.A. and CANADA) .)3 Joint hose
(See Joint hose installation note (except U.S.A. and CANADA) .)4 Evaporative hose No. 1 5 Breather hose 6 Fuel-filler pipe 7 Fuel-filler pipe protector 8 Evaporative hose No. 2 9 Plug
