Protector Installation Note

Install the protector.

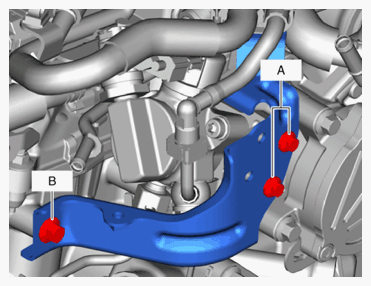

Fig 1: Identifying Protector Bolts
Courtesy of MAZDA

Tightening torque
- A: 8-11 N.m {82-112 kgf.cm, 71-97 in.lbf}
- B: 20-26 N.m {2.1-2.6 kgf.m, 15-19 ft.lbf}
Install the ground cable to the protector.

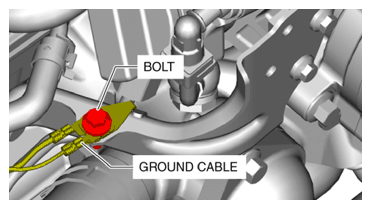

Fig 2: Identifying Ground Cable Bolt
Courtesy of MAZDA

Tightening torque
- 8-11 N.m {82-112 kgf.cm, 71-97 in.lbf}
Install the clip to the protector.

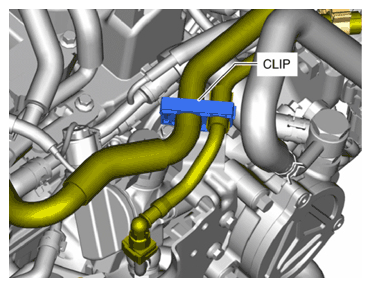

Fig 3: Identifying Protector Clip
Courtesy of MAZDA
