Ignition System Location Index

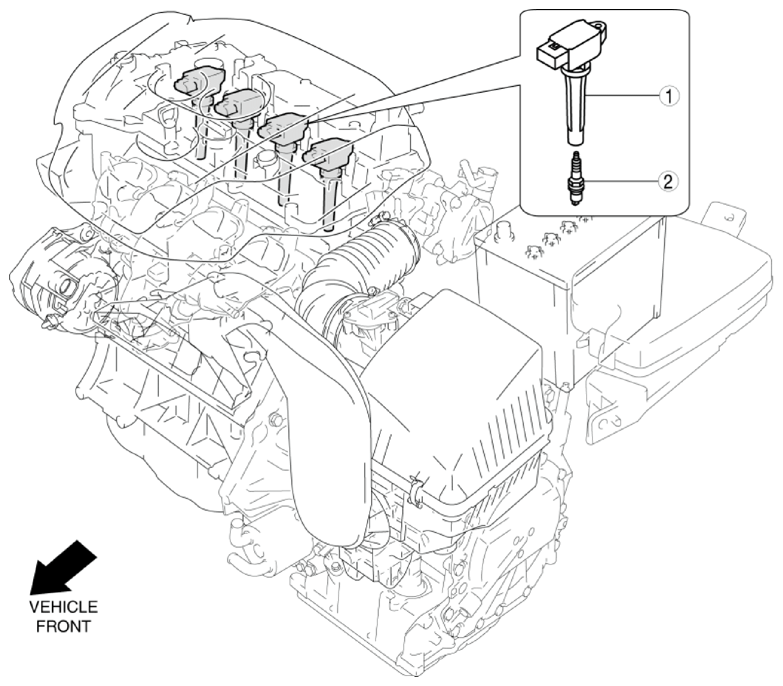

Fig 1: Ignition System Component Location (SKYACTIV-G 2.5T)

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Ignition coil/ion sensor (See IGNITION COIL/ION SENSOR REMOVAL/INSTALLATION .) (See IGNITION COIL INSPECTION .)
2	Spark plug (See SPARK PLUG REMOVAL/INSTALLATION .) (See SPARK PLUG INSPECTION .)
