Troubleshooting Procedure

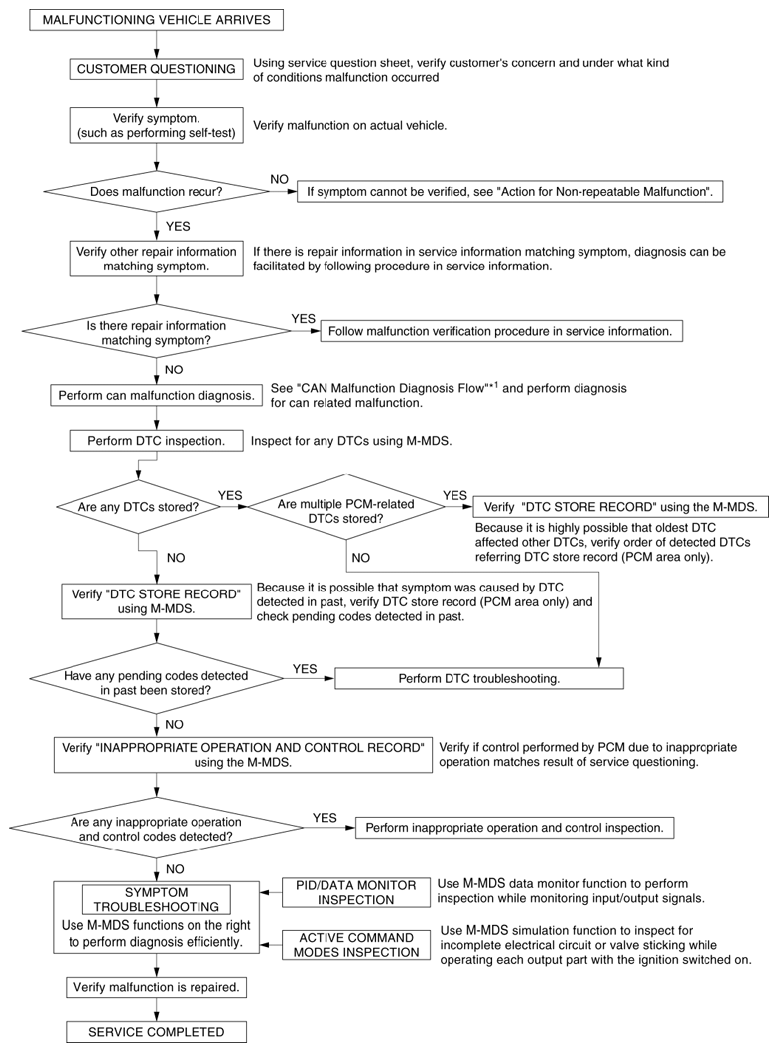

Fig 1: PCM Troubleshooting Procedure Flowchart
Courtesy of MAZDA
Courtesy of MAZDA
