Mode 06 (EVAP System Repair Verification Drive Mode)

NOTE:

If "EVAP System Repair Verification Drive Mode" cannot be performed (it is impossible to drive the vehicle under this Drive Mode condition), perform the evaporative system test procedure as an alternative. Refer to ENGINE CONTROL SYSTEM OPERATION INSPECTION [SKYACTIV-G 2.5T] .)

Verify that all of the following PIDs are within the following specifications. All PIDs must be within specifications before the engine is started to initiate the evaporative system test.
- IAT: 5-35 °C {41-95 °F}
- FLI: 15-85 %
- BARO: Above 72.2 kPa {0.736 kgf/cm ^2, 10.5 psi}
Start the engine and warm it up completely.
Clear the DTCs from the PCM memory using the M-MDS. Refer to CLEARING DTC .)
Drive the vehicle as shown in the graph.

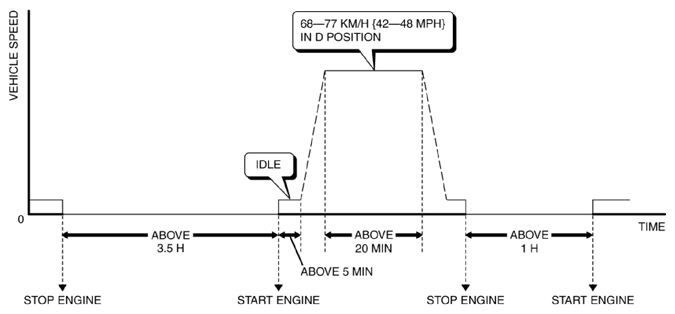

Fig 1: Vehicle Speed/Time Graph (EVAP System Repair Verification Drive Mode)
Courtesy of MAZDA
Access the ON BOARD SYSTEM READINESS to verify the OBD monitoring status. Refer to ON-BOARD DIAGNOSTIC TEST .)
- If completed, the OBD monitoring status items change from non-completed to completed.
- If not completed, switch the ignition off then go back to Step 1.
Access the DIAGNOSTIC MONITORING TEST RESULTS to verify the monitor results. Refer to DIAGNOSTIC MONITORING TEST RESULTS .)
- If detected values are not within specification, repair has not been completed.
Verify that no DTCs are displayed.
