Indicator Removal/Installation: Notes

Disconnect the negative battery terminal. (Refer to NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Remove the following parts:
1. Selector lever knob (Refer to SELECTOR LEVER REMOVAL/INSTALLATION .)
2. Shift panel (Refer to SHIFT PANEL REMOVAL/INSTALLATION .)
Turn over the removed shift panel and remove the boots from the securing parts shown in the figure.

Fig 1: Identifying Shift Panel, Boots And Securing Parts
Courtesy of MAZDA MOTORS CORP.
Remove in the order indicated in the table.

Install in the reverse order of removal.

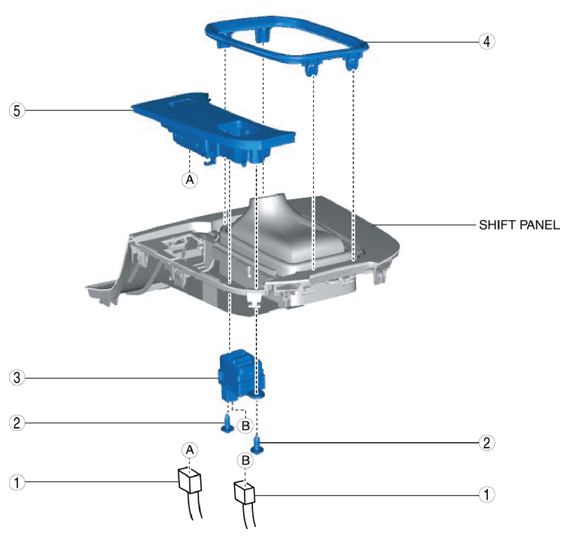

Fig 2: Identifying Connector, Screw, Drive Selection Switch, Indicator Panel And Indicator

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Connector
2	Screw
3	Drive selection switch
4	Indicator panel
5	Indicator (See Indicator Removal Note .)
