Not P Position Switch Inspection

NOTE:
  • The not P position switch is built into the selector lever component.
  1. Disconnect the negative battery terminal. (Refer to NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Selector lever knob (Refer to AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
    2. Shift panel (Refer to SHIFT PANEL REMOVAL/INSTALLATION .)
    3. Console side panel (Refer to CONSOLE SIDE PANEL REMOVAL/INSTALLATION .)
    4. Front console (Refer to FRONT CONSOLE REMOVAL/INSTALLATION .)
    5. Side wall (Refer to SIDE WALL REMOVAL/INSTALLATION .)
    6. Rear console (Refer to REAR CONSOLE REMOVAL/INSTALLATION .)
  3. Disconnect the selector lever component connector.

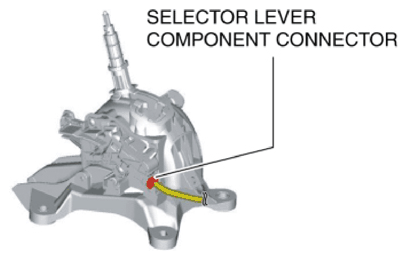

    Fig 1: Identifying Selector Lever Component Connector
    G10948153Courtesy of MAZDA MOTORS CORP.
  4. Verify that the continuity between selector lever component terminals B and G.

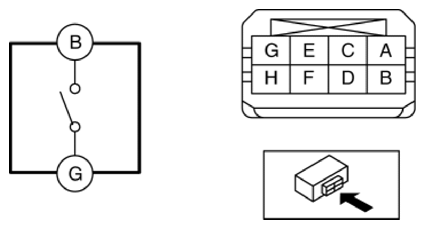

    Fig 2: Checking Continuity Between Selector Lever Component Terminals
    G10948154Courtesy of MAZDA MOTORS CORP.
    NOT P POSITION SWITCH SPECIFICATION

    Test condition Continuity
    Selector lever is in the P position. No continuity
    Selector lever is not in the P position. Continuity
