Drive Selection Switch Removal/Installation

Disconnect the negative battery terminal. (Refer to NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Remove the selector lever knob. (Refer to AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
Remove the shift panel. (Refer to SHIFT PANEL REMOVAL/INSTALLATION .)

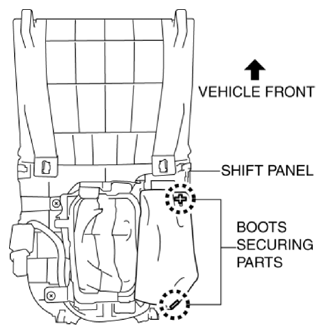

Turn over the removed shift panel and remove the boots from the securing parts shown in the figure.

Fig 1: Identifying Shift Panel And Boots Securing Parts
Courtesy of MAZDA
Remove in the order indicated in the table.
Install in the reverse order of removal.

Fig 2: Removing Shift Panel

Courtesy of MAZDA
