Console Panel Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the center console box. (See CENTER CONSOLE BOX REMOVAL/INSTALLATION .)

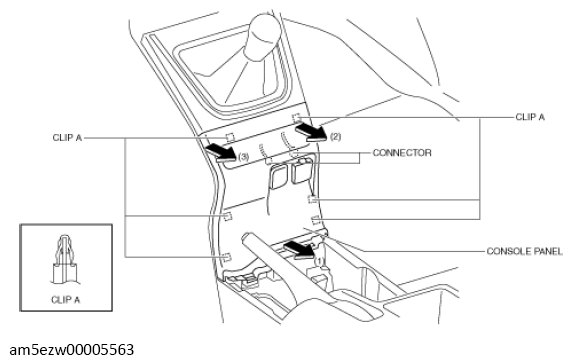

  3. Pull the console panel in the direction of the arrow (1), (2), (3) shown in the figure while detaching clips A.
    G13728343Courtesy of MAZDA MOTORS CORP.
  4. Disconnect the connector.
  5. Remove the console panel.
  6. Install in the reverse order of removal.
