Ignition Switch Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the column cover. (See COLUMN COVER REMOVAL/INSTALLATION .)

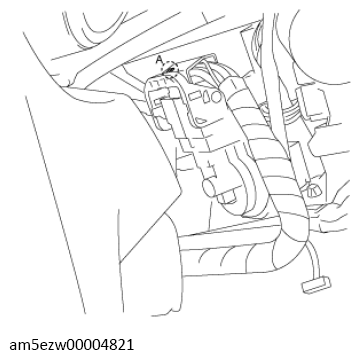

  3. Detach the tab A shown in the figure.
    G13728666Courtesy of MAZDA MOTORS CORP.
  4. Remove the ignition switch connector.

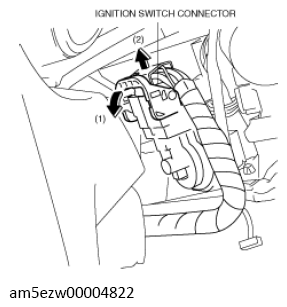

    G13728667Courtesy of MAZDA MOTORS CORP.
    1. Pull the lock lever in the direction of the arrow shown in the figure and release the lock.
    2. Disconnect the ignition switch connector.
  5. Remove the ignition switch.

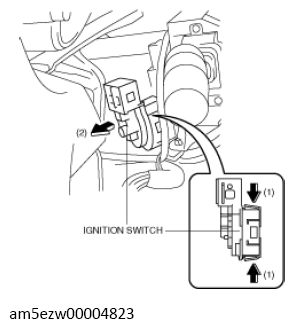

    G13728668Courtesy of MAZDA MOTORS CORP.
    1. Push the tab shown in the figure.
    2. Remove the ignition switch.
  6. Install in the reverse order of removal.
