Outer Mirror Glass Removal

  1. Disconnect the negative battery cable.

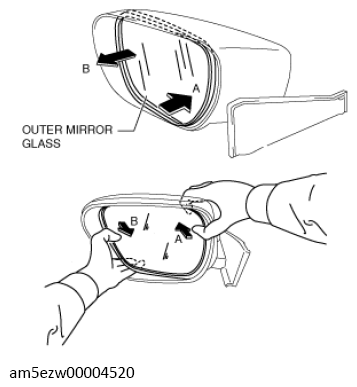

  2. Press area A of the outer mirror glass shown in the figure so that area B moves outward.
    G13727963Courtesy of MAZDA MOTORS CORP.

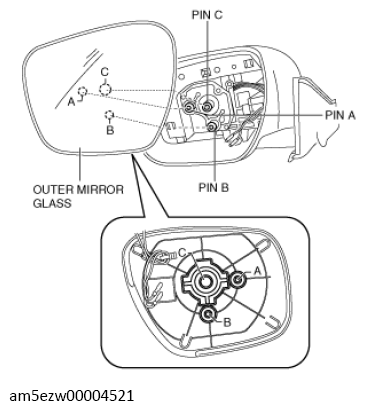

  3. Detach pin A while lifting up the inside of the outer mirror glass.
    G13727964Courtesy of MAZDA MOTORS CORP.
  4. Pull the outer mirror glass and remove pins B and C.

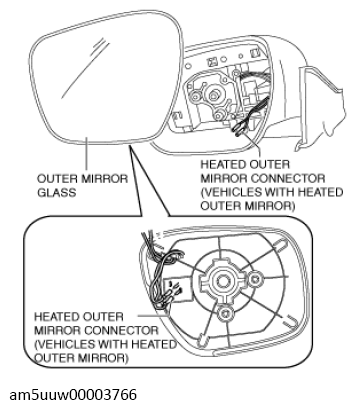

  5. Disconnect the heated outer mirror connector (vehicles with heated outer mirror).
    G13727965Courtesy of MAZDA MOTORS CORP.
  6. Remove the outer mirror glass.
