Up/down/left/right Adjustment Motor
- Disconnect the negative battery cable.
- Remove the inner garnish. (See INNER GARNISH REMOVAL/INSTALLATION .)
- Remove the front door trim. (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)
- Remove the power outer mirror. (See POWER OUTER MIRROR REMOVAL/INSTALLATION .)

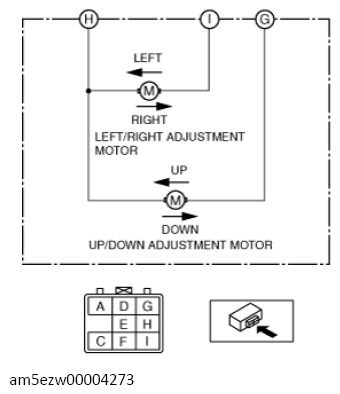

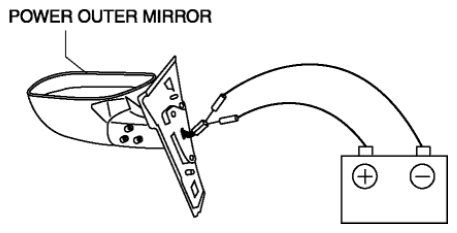

- Apply battery positive voltage and connect the ground to the power outer mirror terminals and inspect the power outer mirror operation.
- If not as indicated in the table, replace the power outer mirror. (See POWER OUTER MIRROR REMOVAL/INSTALLATION .)

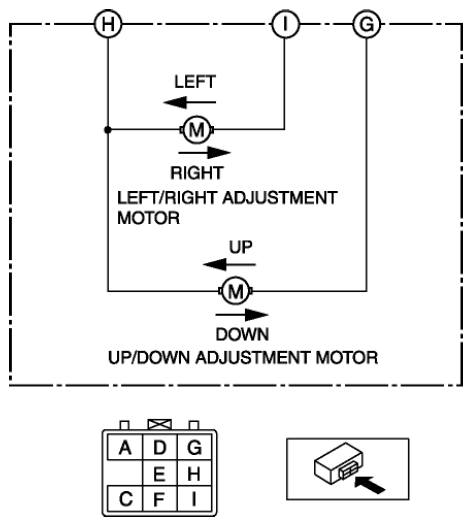

| Mirror operation direction | Terminal | |
|---|---|---|
| B+ | Ground | |
| Up | G | H |
| Down | H | G |
| Left | I | H |
| Right | H | I |
