Power Window Main Switch Inspection
>>
Inspection Using an Oscilloscope (Reference)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Inspection Using an Oscilloscope (Reference)
Courtesy of MAZDA MOTORS CORP.

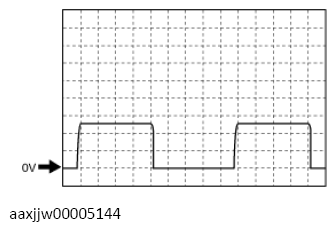

Terminal: 2C (+) ↔ ground (-) 2D (+) ↔ ground (-)
Oscilloscope setting: 2 V/DIV (Y), 1 ms/DIV (X), DC range
